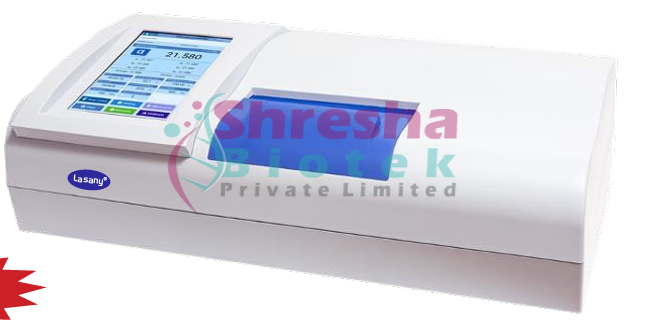

AUTOMATIC POLARIMETER – TECHNICAL SPECIFICATIONS
| Parameter |
Specification |
Parameter |
Specification |
| ★ Measuring mode |
Optical Rotation, Specific Rotation, Concentration, International Sugar Scale and User defined |
★ Interface |
RS232, USB, U disk, Keyboard, Mouse, WIFI, Ethernet |
| ★ Light source |
LED + precision interference filters |
★ Test tubes |
Standard: 200mm (regular), 100mm (temperature control); Optional: 50mm (regular), 200mm (temperature control) |
| ★ Wavelength |
589 nm |
★ Power supply |
AC~220V, 50Hz |
| ★ Measuring range |
±90° (OR), ±259°Z (ISS) |
|
|
| ★ Resolution |
0.001° |
|
|
| ★ Accuracy |
±0.004° |
|
|
| ★ Repeatability |
≤0.002° |
|
|
| ★ Min. transmission |
0.05% |
|
|
| ★ Response speed |
8°/S |
|
|
| ★ Measuring time |
6 times/26s |
|
|
| ★ Temp. Control range |
Peltier temperature control: 10–50°C |
|
|
| ★ Temp. accuracy |
±0.1°C |
|
|
| ★ Operating system |
Android |
|
|
| ★ Display |
10.1 inch color touch LCD |
|
|
| ★ Calibration method |
Multi-point automatic calibration |
|
|
| ★ Data storage |
128 GB |
|
|
| ★ GMP Regulations |
Qualified |
|
|
| ★ Audit trail |
Yes |
|
|
CHARACTERISTICS
★ Unique and state-of-art control technology, equipped with high quality prisms.
★ High response speed, less noise, and minimum transmittance makes measurement more accurate and efficient.
★ LED light source that lasts over 100000 hours.
★ Large database and user hierarchical management. Up to 1000 pre-stored measurement methods.
★ Fast and stable temperature control minimizes measuring time.
★ Comply with pharma standards and audit trail function.
★ Extra Test Tube 100/200mm @Rs 2500/-
