₹148,500.00 Original price was: ₹148,500.00.₹135,000.00Current price is: ₹135,000.00.
Technical Specifications

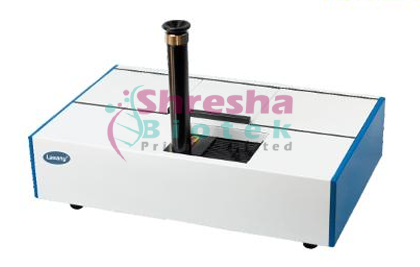

Visual measurement of color matching to determine material color;
Design in conformity with internationally accepted color scale of Lovibond;
Simple structure and easy to operate.
| ★ Measurement range | Red R0.1-R79.9 Lovibond Yellow R0.1-R79.9 Lovibond Blue R0.1-R49.9 Lovibond Neutral 0.1-3.9 Lovibond |
| ★ Minimum Reading | 0.1 Lovibond |
| ★ White board diffuse reflectance | > 80% |
| ★ Magnification | 1.9X |
| ★ Dimension of Colorimetric dishes | 10mm 20mm 40mm 25.4mm 20mm 40mm 133.4mm 20mm 40mm |
| ★ Weight (Gross) | 11kg |
| ★ Overall dimensions | 620mm x 440mm x 300mm |
TECHNICAL PARAMETERS
Volume [L]: 220
Temp. Range [°C]: +5 to 60
Temp. Resolution [°C]: 0.1
Temp. Fluctuation at 37°C [°C]: ±0.5
Temp. Uniformity at 37°C [°C]: ±1
Rotation Rate [rpm]: 1~300
Rotation Accuracy [rpm]: ±1
Vibration Amplitude [mm]: Ø25
Timer Range [h]: 0~999
Number of Trays [pc]: 1 included ( 2 optional)
Power Supply [V, Hz]: 220, 50/60
Internal Dimensions W×D×H [mm]: 600x600x600
Housing Dimensions W×D×H [mm]: 755×870×1310
Tray Size W×D [mm]: 595x595mm
Standard Configuration [pcxml]: 16×250/500 or 9×1000 ml or 4×2000 ml
Net Weight [kg]: 220
| Shaker Speed (20 – 250 RPM) (350,400 & 500 OPTIONAL) | |
|---|---|
| Orbit Diameter | ø 25 mm |
| Accuracy | ± 2% of maximum speed |
| Temperature range | 5˚C above RT to 60˚C & with cooling 5°C-60°C (Customize temperature options available) |
| Resolution | 0.1°C |
| Temp. accuracy | ± 0.3˚C |
| Power supply | 230V ± 10%, 50Hz |
| Flasks | 12X12 | 16X16 | 18X18 | 24X24 |
| 50ml | 19 | 40 | 45 | 60 |
| 100ml | 12 | 16 | 18 | 24 |
| 250ml | 9 | 12 | 16 | 24 |
| 500ml | 4 | 6 | 8 | 10 |
| 1000ml | 2 | 3 | 3 | 5 |
| 2000ml | 1 | 2 | 2 | 4 |
SPECIFICATIONS:
| Temperature Range | 5°C to 60°C |
| Temperature accuracy | ±1°C |
| Temperature controller |
|
| Humidity Range | 40% to 95% RH |
| Humidity accuracy | ±3% RH |
| Humidity controller |
|
| Chamber Illumination | Fluorescent white light |
| Construction | Double walled |
| Insulation | PUF insulation |
| Exterior | Powder coated GI sheet |
| Interior | Stainless steel 304 |
| Door | Solid insulated door with lock and key |
| Inner door | Glass door fitted in steel frame |
| Shelves / trays | 2 to 5 steel wire mesh trays (height adjustable) |
| Air Circulation | Axial fan / blower |
| Refrigeration | CFC Free compressor with condenser, motor and relay complete unit |
| Humidity system |
|
| Optional |
|
| Volume (Liters) | Inner Chamber size (mm) | Trays | |
| 200 Liters | 600 x 600 x 600 | 2 | |
| 324 Liters | 600 x 600 x 900 | 2 | |
| 450 Liters | 600 x 600 x 1250 | 3 | |
| 600 Liters | 600 x 800 x 1250 | 3 | |
| 800 Liters | 800 x 800 x 1250 | 4 | |
| 1000 Liters | 800 x 800 x 1570 | 4 |
