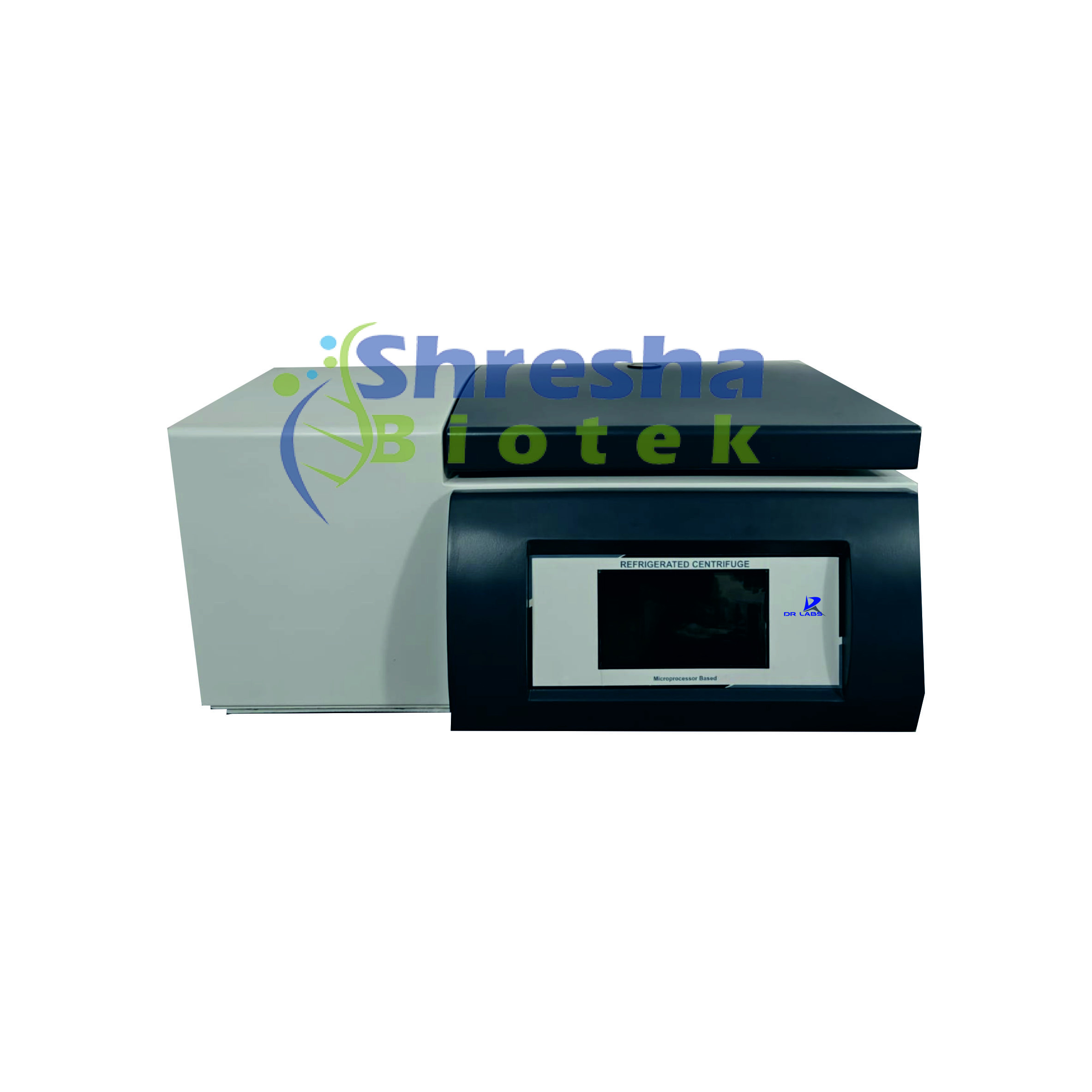

HIGH SPEED REFRIGERATED CENTRIFUGE

Product Code: DR-RC

Categories: ANALYTICAL INSTRUMENTS, LABORATORY EQUIPMENTS, MICROBIOLOGY, MOLECULAR BIOLOGY

A centrifuge is a device that separates fluid components using centrifugal force by spinning them at high speeds. DR Labs Cooling Centrifuges efficiently separate liquids from solids or fluids of differing
densities. These models feature high-speed performance and advanced cooling, ensuring sample integrity and reliable results. Designed for laboratories, they offer versatile functionality for various applications, making them essential for fluid component analysis and separation. The IG-243R, IG-247R and IG-248R provide robust, efficient, and precise centrifugation solutions for modern lab environments.

KEY FEATURES:

High-Performance Motor: Brushless, high-torque motor with maintenance-free operation ensures no carbon powder pollution, delivering fast acceleration and deceleration.
Eco-Friendly Cooling: Fluorine-free compressors with a double cooling cycle provide precise temperature control for optimal sample protection.
Smart Touch Control: The intuitive microprocessor-based touch display shows real- time temperature, speed, time, and RCF, making operation a breeze.
Customizable Performance: Store up to 100 programs, each with 10 customizable steps. Choose from 10 acceleration and deceleration profiles for tailored performance.
Comprehensive Safety: Features automatic electric lid lock, protection against over-speed and over-temperature, ensuring reliable operation.
Robust & Safe Build: Powder-coated steel exterior with a corrosion-resistant stainless steel inner chamber and a built-in explosion-proof sleeve offering three-tier protection for maximum safety.
Effortless Rotor Handling: Quick and easy rotor loading without direction marks, thanks to the specialized taper sleeve and automatic rotor detection system.
Optimal Centrifugation: High-quality dampers and an automatic solenoid draining valve provide the best centrifugal results with minimal effort.
Automatic Rotor detection: Features an automatic rotor detection system that ensures precise and seamless identification of the rotor, enhancing safety and operational efficiency.
Pre-Set Cooling: Feature allows the chamber to automatically cool down to a specified temperature before or after a run
Short Spin: Provides quick, high-speed centrifugation for brief intervals

Model	DR-RC-101	DR-RC-102	DR-RC-103
Max. Speed	16,000 rpm	18500rpm	21000rpm
Max. RCF	20,600×g	23990×g	30910×g
Max. Capacity	6×100ml	4×180ml	4×800ml
Time Range	1–59h 59 min	0~59h59min	0~59h59min
RPM/RCF Convert	Yes	Yes	Yes
Noise (dB)	≤ 58	≤ 58	≤ 58
Temperature	-20°C to +40°C	-20℃~+40℃	-20℃~+40℃
Acc/Dec	10 Kinds	10 Kinds	10 Kinds
Speed Accuracy	±20 rpm	±20r/min	±20r/min
Temperature Accuracy	±1°C	±1°C	±1°C
Supported rotor type	Angle (27), swing (01), plate (01)	Swingout (07), Microplate (02), Angle (23), Vertical (02)	Swing (08), Microplate (03),Fixed rotor (35)
Dimension (LxWxHmm)	513×370×320 mm	570x600x340mm	513×370×320mm
Voltage(V/Hz)	AC 220V, 50Hz	AC 220V/110V, 50HZ/60HZ	AC 220V/110V 50HZ/60HZ
Certificates	CE, ISO	CE, ISO & Calibration report are available	CE, ISO &Calibration report are available
