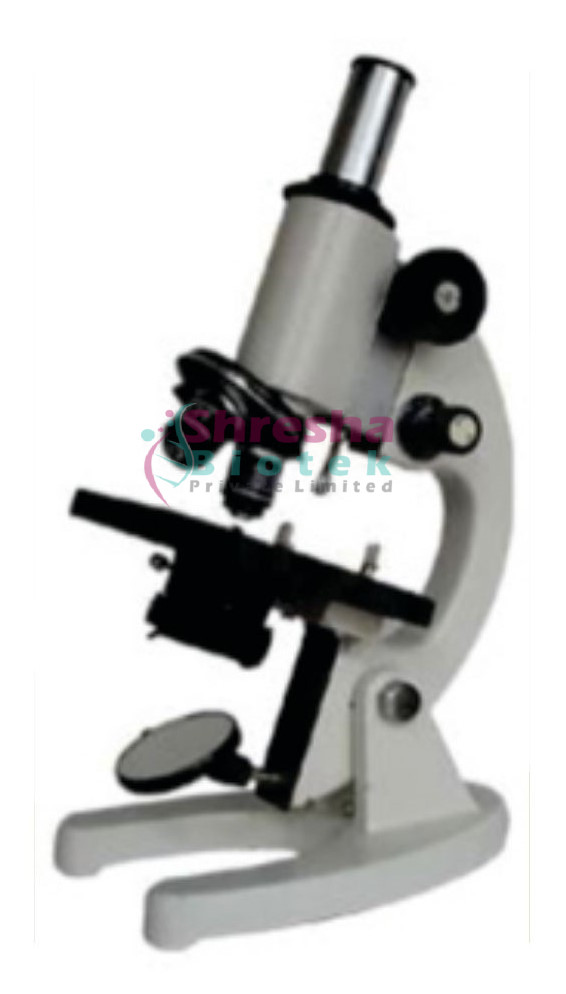

STUDENT MICROSCOPE

Sale!

Product Code: DR-STM

Categories: LABORATORY EQUIPMENTS, MICROBIOLOGY

Original price was: ₹6,864.00.Current price is: ₹6,240.00.

It has a u-shaped cast iron base with 90 inclinable body, Packed in shock proof thermocouple box and outer thick wooden box with instruction manual and vinyl cover.

Magnification : 100X & 60X

Eye Piece: 10X & 15X

Achromatic Objective : 10X & 40X (Par-Focal)

Nose Piece : Revolving Triple Nose piece carries the objectives.

Focusing System: Separate knobs for coarse and fine motion are provided on the body. 110 x 110mm with stage clips.

Mechanical Stage: Illumination is by plano concave reflector, a bright field condenser is fixed to the stage.
