HOSPITAL FURNITURE

Product Categories

Call For Price

AUTOPSY STATION/TABLE

Specifications:

Stainless steel thickness: 1.5–2 mm
Dimensions: approx. 2400 L x 800 W x 1750 H mm
Ventilation system with centrifugal electro-fan motors
Adjustable suction speed, max capacity 1404 m³/h
Aluminium axis filters with potassium permanganate for formaldehyde
Touch screen control for ventilation and filter monitoring
Filter life control with notification at 800 hrs
Visual alarms and ON/OFF lighting controls
Displays splash shield control, ventilation speed %, filter hours
Water-tight safety covers on switches
Electrical supply: 220V ±20V, 50Hz
Formalin tank storage with ventilated lower enclosure
Height adjustable work area with 350 mm range
Supplied with 2 perforated removable trays (handling holes at corners)

PAEDIATRIC BED

Specifications:

Frame material: Mild steel with epoxy powder coating or stainless steel
Bed top: Solid or perforated CRC sheet/mesh platform
Overall dimensions: Approx. 1400–1600 x 600–700 x 600–750 mm
Side rails: Fixed or collapsible, full-length
Headrest/footrest: Optional manual adjustment
Mattress: Foam mattress with waterproof cover (optional)
Base: Anti-skid rubber shoes and/or lockable smooth-rolling castors
Load capacity: Up to 100–120 kg
Finish: Epoxy powder coated or polished stainless steel
Weight: Approx. 35–50 kg

BABY BASSINET (EPC)

Specifications:

Frame material: Mild steel with epoxy powder coating
Bassinet: Transparent acrylic, curved and enclosed
Mattress: Soft foam with waterproof, washable cover
Overall dimensions: Approx. 850–900 x 450–500 x 850 mm (L x W x H)
Storage: Utility tray/shelf at the base
Castors: 4 smooth-rolling castors, 2 with locking mechanism
Load capacity: Up to 15–20 kg
Finish: High-quality epoxy powder coated frame
Weight: Approx. 12–18 kg

BABY CRADLE

Specifications:

Frame material: Mild steel or stainless steel with epoxy powder coating
Cradle bed: Wire mesh or perforated sheet with gentle contours
Mattress: Soft foam with waterproof, washable cover
Overall dimensions: Approx. 800–900 x 450 x 900 mm (L x W x H)
Rocking: Manual rocking mechanism (optional locking feature)
Base: Anti-skid rubber shoes and/or lockable smooth-rolling castors
Load capacity: Up to 15–20 kg
Finish: Epoxy powder coated or polished stainless steel
Weight: Approx. 10–15 kg

GYNAECOLOGY / VAGINAL EXAMINATION TABLE

Specifications:

Frame material: Mild steel or stainless steel with epoxy powder coating
Upholstery: Medical-grade rexine or synthetic leather
Mattress thickness: Approx. 50–75 mm
Overall dimensions: Approx. 1800 x 600 x 800 mm
Backrest adjustment: Up to approx. 70°
Leg supports: Adjustable padded lithotomy crutches or stirrups
Base: Anti-skid rubber shoes and/or lockable smooth-rolling castors
Load capacity: Up to 150–180 kg
Finish: Epoxy powder coated or polished stainless steel
Weight: Approx. 40–60 kg

DELIVERY BED (PREMIUM, EPC)

Specifications:

Frame material: Mild steel with epoxy powder coating
Upholstery: Medical-grade synthetic leather or rexine, waterproof and easy to clean
Mattress thickness: Approx. 75–100 mm
Overall dimensions: Approx. 1800–2000 x 600–700 mm
Backrest adjustment: Up to approx. 70°
Leg section: Detachable and adjustable
Lithotomy poles: Height and angle adjustable with padded leg holders
Base: Equipped with anti-skid rubber shoes and/or lockable smooth-rolling castors
Load capacity: Up to 150–180 kg
Finish: High-quality epoxy powder coated
Weight: Approx. 65–85 kg

LABOUR DELIVERY ROOM BED (HYDRAULIC)

Specifications:

Frame material: Heavy-duty mild steel or stainless steel with epoxy powder coating
Upholstery: Medical-grade synthetic leather or rexine, water- and stain-resistant
Mattress thickness: Approx. 75–100 mm
Overall dimensions: Approx. 1800–2000 x 600–700 mm
Height adjustment range: Approx. 600–900 mm (hydraulic lift)
Backrest adjustment: Up to approx. 70°
Leg section: Adjustable/detachable
Lithotomy poles: Adjustable with padded leg supports
Base: Anti-skid rubber shoes and/or lockable smooth-rolling castors
Load capacity: Up to 180 kg
Finish: Epoxy powder coated or polished stainless steel
Weight: Approx. 80–100 kg

EXAMINATION TABLE (3 SECTION, FOLDABLE)

Specifications:

Frame material: Mild steel or stainless steel with epoxy powder coating
Upholstery: Synthetic leather or rexine, water- and stain-resistant
Mattress thickness: Approx. 50–75 mm
Overall dimensions (open): Approx. 1800 x 600 x 800 mm
Folded dimensions: Approx. 900 x 600 x 300 mm
Headrest and leg section: Manually adjustable
Sections: Three-section top (headrest, main, leg section)
Base: Anti-skid rubber shoes and/or lockable smooth-rolling castors
Load capacity: Up to 150 kg
Finish: Epoxy powder coated or polished stainless steel
Weight: Approx. 30–45 kg

EXAMINATION TABLE (STAINLESS STEEL)

Specifications:

Material: Stainless Steel
Upholstery: Synthetic leather or rexine, waterproof and stain-resistant
Mattress thickness: Approx. 50–75 mm
Overall dimensions: Approx. 1800 x 600 x 800 mm
Top section: Fixed cushioned surface
Base: Anti-skid rubber shoes and/or lockable smooth-rolling castors
Load capacity: Up to 150–180 kg
Finish: Polished or matte stainless steel
Weight: Approx. 40–60 kg

EXAMINATION TABLE (DELUXE)

Specifications:

Frame material: Mild steel or stainless steel with epoxy powder coating
Upholstery: High-grade synthetic leather or rexine, water- and stain-resistant
Mattress thickness: Approx. 75–100 mm
Overall dimensions: Approx. 1800–1900 x 600–700 x 800 mm
Backrest adjustment: Up to approx. 70°
Leg section adjustment: Manually adjustable
Storage: Optional drawers or cabinets integrated into base
Base: Anti-skid rubber shoes and/or lockable smooth-rolling castors
Load capacity: Up to 150–180 kg
Finish: Epoxy powder coated or polished stainless steel
Weight: Approx. 60–85 kg

EXAMINATION TABLE (CUSHIONED, FOLDABLE)

Specifications:

Frame material: Mild steel or stainless steel with epoxy powder coating
Upholstery: Synthetic leather or rexine, easy to clean and disinfect
Mattress thickness: Approx. 50–75 mm
Overall dimensions (open): Approx. 1800 x 500–600 x 800 mm
Folded dimensions: Approx. 900 x 500–600 x 250 mm
Backrest adjustment: Manually adjustable up to approx. 70°
Base: Anti-skid rubber shoes and/or lockable smooth-rolling castors
Load capacity: Up to 120–150 kg
Finish: Epoxy powder coated or polished stainless steel
Weight: Approx. 25–40 kg

EXAMINATION TABLE (ECONOMY)

Specifications:

Frame material: Mild steel or stainless steel with epoxy powder coating
Top section: Single, fixed cushioned surface
Upholstery: Rexine or synthetic leather, water- and stain-resistant
Mattress thickness: Approx. 50 mm
Overall dimensions: Approx. 1800 x 500 x 800 mm
Base: With anti-skid rubber shoes and/or lockable castors
Load capacity: Up to 120–150 kg
Finish: Epoxy powder coated or polished stainless steel
Weight: Approx. 25–35 kg

EXAMINATION TABLE (CABINET and DRAWERS)

Specifications:

Frame material: Mild steel or stainless steel with epoxy powder coating
Upholstery: Water-resistant, stain-resistant synthetic leather or rexine
Overall dimensions: Approx. 1800 x 600 x 800 mm
Mattress: 50–75 mm thick foam padding
Backrest adjustment: Up to approx. 70°, manually operated
Storage: 2–3 drawers and 1–2 cabinet sections, depending on model
Base: Fitted with anti-skid rubber shoes and/or lockable castors
Load capacity: Up to 150–180 kg
Finish: Epoxy powder coated or polished stainless steel
Weight: Approx. 60–85 kg

LABOUR and DELIVERY BED (TWO PARTS)

Specifications:

Frame material: Mild steel or stainless steel with epoxy powder coating
Sections: Two-section top (main bed and detachable foot-end)
Mattress: Foam-padded, covered with waterproof synthetic material
Overall dimensions: Approx. 1800–2000 x 600–700 mm
Backrest adjustment: Up to approx. 70° via ratchet or gas spring
Lithotomy poles: Adjustable height and angle with padded supports
Base: Fitted with anti-skid rubber shoes and/or lockable castors
Load capacity: Up to 150–180 kg
Finish: Epoxy powder coated or polished stainless steel
Weight: Approx. 55–75 kg

LABOUR and DELIVERY BED (TELESCOPIC)

Specifications:

Frame material: Mild steel or stainless steel with epoxy powder coating
Mattress sections: Three-section, foam-padded with waterproof cover
Overall dimensions: Approx. 1800–2000 x 600–700 mm
Height adjustment range: Approx. 600–850 mm
Backrest angle: Adjustable up to 70°
Leg section: Adjustable and/or detachable
Lithotomy poles: Height and angle adjustable with padded supports
Base: With anti-skid rubber shoes and/or lockable castors
Load capacity: Up to 150–180 kg
Finish: Epoxy powder coated or stainless steel polished
Weight: Approx. 60–80 kg

X-RAY VIEW BOX (LED)

Features:

High-brightness LED light source for uniform and flicker-free illumination
Slim and lightweight design with minimal heat generation
Energy-efficient with long-lasting LED life (up to 50,000 hours)
Acrylic viewing panel for clear and distortion-free image display
Suitable for single or multiple film viewing (1, 2, or 3 panels)
Wall-mounted or desktop use for versatile installation
Instant start with no warm-up time
Low maintenance and noise-free operation
Available with both anti-skid rubber feet and smooth-rolling castor stand (optional for mobile versions)
Ideal for hospitals, diagnostic centers, and radiology departments

COMMODE CHAIR

Specifications:

Frame material: Powder-coated or stainless steel
Seat material: Padded PU or plastic with hygiene cut-out
Commode pan: Removable plastic or stainless steel
Seat height: Adjustable, approx. 450–550 mm
Overall dimensions: Approx. 550 x 450 x 850 mm
Load capacity: Up to 120–150 kg
Base: With anti-skid rubber shoes and/or smooth-rolling castors (optional)
Foldable: Available in foldable and non-foldable versions
Weight: Approx. 6–10 kg
Finish: Epoxy powder-coated or polished stainless steel

WASH BASIN STAND (3-LEGGED, SINGLE)

Specifications:

Basin material: Stainless Steel
Basin diameter: Approx. 350 mm
Basin depth: Approx. 100–150 mm
Stand material: Stainless steel tubular frame
Overall height: Approx. 800–900 mm
Base: 3-legged with anti-skid rubber shoes and optional smooth-rolling castors
Finish: Polished or matte stainless steel
Weight: Approx. 4–6 kg

WASH BASIN STAND (DOUBLE)

Specifications:

Basin material: Stainless Steel (Grade 304 or equivalent)
Basin diameter (each): Approx. 350 mm
Basin depth: Approx. 100–150 mm
Stand material: Stainless steel tubular frame
Overall height: Approx. 800–900 mm
Base: Four-legged with anti-skid rubber shoes or smooth-rolling castors
Finish: Polished or matte stainless steel
Weight: Approx. 6–8 kg

WASH BASIN STAND (SINGLE)

Specifications:

Basin material: Stainless Steel
Basin diameter: Approx. 350 mm
Basin depth: Approx. 100–150 mm
Stand material: Stainless steel tubular frame
Overall height: Approx. 800–900 mm
Base: Four-legged with anti-skid rubber shoes or smooth-rolling castors
Finish: Polished or matte stainless steel
Weight: Approx. 4–6 kg

KICK BOWL (S.S.)

Specifications:

Bowl material: Stainless Steel
Bowl diameter: Approx. 350 mm
Bowl depth: Approx. 100–150 mm
Frame: Stainless steel tubular stand
Height from floor: Approx. 300–400 mm
Base: Rubber-tipped legs for stability or smooth-rolling castors
Finish: Polished or matte stainless steel
Weight: Approx. 2–4 kg

FOOT STEP (DOUBLE, S.S.)

Specifications:

Material: Stainless Steel
Step size (each): Approx. 400 x 250 mm
Step height: Lower step approx. 150 mm, upper step approx. 300 mm
Load capacity: Up to 120–150 kg
Leg support: Four-legged with non-slip rubber shoes
Tread surface: Anti-skid stainless steel or rubber-coated sheet
Finish: Matte or polished stainless steel
Weight: Approx. 5–7 kg

FOOT STEP (DOUBLE, EPC)

Specifications:

Frame material: Mild steel with epoxy powder coating
Step size (each): Approx. 400 x 250 mm
Step height: Lower step approx. 150 mm, upper step approx. 300 mm
Load capacity: Up to 120–150 kg
Leg support: Four-legged with anti-slip rubber shoes
Tread surface: Anti-skid rubber mat or textured sheet on both steps
Finish: Epoxy powder coated in standard colors (black, grey, etc.)
Weight: Approx. 5–7 kg

FOOT STEP (SINGLE, S.S.)

Specifications:

Material: Stainless Steel
Step size: Approx. 400 x 250 mm
Step height: Approx. 200–250 mm
Load capacity: Up to 120–150 kg
Leg support: Four-legged with non-slip rubber shoes
Top surface: Anti-skid stainless steel or rubber-coated sheet
Finish: Matte or polished stainless steel
Weight: Approx. 3–5 kg

FOOT STEP (SINGLE, EPC)

Specifications:

Frame material: Mild steel with epoxy powder coating
Step size: Approx. 400 x 250 mm
Step height: Approx. 200–250 mm
Load capacity: Up to 120–150 kg
Leg support: Four-legged with rubber shoes
Tread surface: Anti-slip rubber mat or textured metal sheet
Finish: Epoxy powder coated in black or grey
Weight: Approx. 3–5 kg

DOCTOR’S STOOL WITH BACK REST

Specifications:

Frame/base: Chrome-plated steel or powder-coated metal
Seat material: PU/PVC leatherette with high-density foam
Height adjustment range: Approx. 450–600 mm
Seat diameter: Approx. 350–400 mm
Backrest height: Approx. 200–250 mm
Base diameter: Approx. 500–550 mm
Castors: Nylon or PU, 50 mm diameter
Weight capacity: Up to 120–150 kg
Swivel: 360° rotation
Color options: Black, blue, grey, or customizable

BLOOD DONATION CAMP COT

Specifications:

Frame material: Powder-coated steel or aluminum
Fabric material: Nylon, canvas, or oxford fabric with foam padding
Dimensions (L x W x H): Approx. 1900 x 600 x 500 mm
Folded dimensions: Approx. 950 x 600 x 150 mm
Weight capacity: Up to 120–150 kg
Net weight: 10–15 kg
Color options: Blue, green, grey (customizable)
Assembly type: Foldable, no tools required
Legs: Rubber-tipped or plastic capped for grip and floor protection

BLOOD DONOR CHAIR CUM COUCH

Specifications:

Frame material: Powder-coated steel or stainless steel
Upholstery: PU/PVC leatherette with high-density foam
Seat height: Approx. 500–550 mm
Overall dimensions: Approx. 1800 x 600 x 1100 mm
Recline angle: 90° to 180° adjustable
Maximum load capacity: 150 kg
Weight: 25–35 kg
Color options: Blue, black, grey (customizable)
Mobility: Fixed or with lockable castors (optional)

BLOOD DONOR CHAIR (RECLINER)

Specifications

Frame Material: Powder-coated mild steel or stainless steel
Upholstery: Medical-grade vinyl, antibacterial and easy to wipe
Cushioning: High-density PU foam for prolonged comfort
Backrest: Manually adjustable reclining back (approx. 90° to 160°)
Leg Rest: Synchronized or independently adjustable with reclining action
Armrests: Dual, cushioned, and angle-adjustable
Base: 4-legged with rubber feet or optional castors
Finish: Epoxy-coated or mirror/matt stainless finish
Dimensions: Approx. 1800mm (L) x 600mm (W) x 1100mm (H) when fully reclined
Weight Capacity: Up to 150 kg
Usage: Blood banks, hospitals, donation camps, and mobile donation units
Optional Features: IV pole attachment, foldable tray, remote control (motorized version)

BLOOD DONOR CHAIR (ECONOMY)

Specifications

Frame Material: Epoxy powder-coated mild steel
Upholstery: Medical-grade vinyl, water-resistant and easy to disinfect
Seat & Backrest: Cushioned with high-density foam
Armrests: Dual, cushioned, and adjustable
Backrest: Fixed or semi-reclining (varies by model)
Legs: 4-legged base with rubber stoppers
Finish: Smooth epoxy powder coating
Dimensions: Approx. 1700mm (L) x 600mm (W) x 900mm (H)
Weight Capacity: Up to 120 kg
Usage: Blood donation camps, clinics, mobile units, hospitals
Optional Features: Foldable design, reclining backrest, IV pole attachment

PATIENT’S STOOL (4 LEGGED, REVOLVING S.S.)

Specifications

Material: Stainless Steel
Seat Type: Padded, revolving seat with antimicrobial vinyl cover
Seat Diameter: Approx. 300mm – 350mm
Height: Fixed, approx. 450mm – 500mm
Base: 4-legged with anti-skid rubber shoes
Rotation: 360-degree swivel mechanism
Finish: Matt or mirror polish stainless steel
Weight Capacity: Up to 100–120 kg
Usage: Outpatient departments, general wards, examination and treatment rooms
Optional Features: Height adjustment, footrest ring

PATIENT’S STOOL (5 LEGGED, REVOLVING)

Specifications

Material: Stainless Steel or powder-coated mild steel
Base: 5-legged with wide stance for maximum stability
Seat Type: Padded, revolving seat with vinyl covering
Seat Diameter: Approx. 300mm – 350mm
Height: Fixed or adjustable (approx. 450mm – 650mm)
Rotation: 360-degree swivel
Feet Options:
- Rubber stoppers (non-mobile)
- Swivel castors (mobile variant)
Finish: Matt stainless steel or epoxy-coated
Weight Capacity: Up to 100–120 kg
Usage: Suitable for patients in consultation and examination areas
Optional Features: Pneumatic lift, footrest ring, anti-static castors

PATIENT’S STOOL (EPC)

Specifications

Material: Epoxy powder-coated mild steel
Seat Type:
- Non-slip rubber top or
- Optional cushioned seat with vinyl covering
Seat Shape: Round or square (typically 300mm – 350mm diameter)
Height: Approx. 450mm – 500mm (fixed)
Legs: 4-legged base with rubber stoppers
Weight Capacity: Up to 100–120 kg
Finish: Smooth, antibacterial powder coating
Usage: Suitable for patient seating in clinics, OPDs, wards, and examination rooms
Optional Features: Cushioned top, stainless steel frame, anti-skid seat surface

ATTENDANT’S STOOL

Specifications

Material: Stainless Steel or powder-coated mild steel
Seat: Padded round seat with high-density foam
Upholstery: Medical-grade vinyl, water-resistant and easy to clean
Height Adjustment: Approx. 450mm – 650mm (manual or pneumatic)
Base Options:
- 4-legged base with rubber tips (fixed type)
- 5-legged base with swivel castors (mobile type)
Seat Diameter: Approx. 300mm – 350mm
Finish: Matt stainless steel or epoxy-coated
Weight Capacity: Up to 100–120 kg
Usage: Clinics, hospitals, examination rooms, laboratories
Optional Features: Backrest, foot ring, anti-static castors

CYLINDER TROLLEY

Specifications

Material: Stainless Steel 304 / Powder-coated mild steel
Cylinder Capacity: Single or double cylinder (varies by model)
Compatible Cylinder Sizes: B-type, D-type, or jumbo depending on model
Wheels: 2 or 4 non-marking rubber/PU wheels (with or without brakes)
Handle: Fixed ergonomic handle
Safety Feature: Cylinder holding chain or strap
Dimensions: Varies by model (typically suited to standard medical cylinders)
Finish: Matt stainless or epoxy-coated
Usage: Hospitals, ambulances, clinics, home healthcare
Optional Features: Adjustable clamps, foldable handle, anti-static wheels

EMERGENCYCRASH CART (MULTI PURPOSE)

Specifications

Material: Powder-coated steel or Stainless Steel (optional ABS top)
Drawer Configuration: 4–6 drawers, with optional dividers and color coding
Top Surface: ABS or stainless steel, flat or with guard rail
Castors: 125mm swivel wheels (2 with brakes, optional anti-static)
Accessories Included:
- IV pole (adjustable height)
- Oxygen cylinder holder
- Defibrillator tray
- Cardiac board
- Sharps container
- Waste bin
- Utility basket
Dimensions: Approx. 750mm x 500mm x 1000mm
Locking System: Central locking with optional seal or digital lock
Finish: Antibacterial powder coat or stainless steel polish
Load Capacity: Approx. 100 kg
Usage: Emergency, ICU, surgical prep, and mobile medical support
Optional Features: Monitor mount, drawer lighting, sealed medication boxes

EMERGENCY CRASH CART (PREMIUM)

Specifications

Material: Stainless Steel / ABS / Powder-coated steel (hybrid structure)
Drawer Configuration: 5–7 drawers with color-coding and smooth slide rails
Top Surface: Stainless steel or molded ABS top with raised edges
Cardiac Board: Included, rear-mounted with quick-release system
Castors: 125mm heavy-duty swivel castors (2 with brakes)
Accessories Included:
- IV pole (adjustable)
- Defibrillator tray with safety belt
- Oxygen cylinder holder
- Sharps container
- Waste bin
- Side utility basket
Dimensions: Approx. 800mm x 500mm x 1050mm (L x W x H)
Locking System: Central key lock or optional electronic lock
Load Capacity: Approx. 100–120 kg total
Finish: Antibacterial, scratch-resistant coating or polished stainless steel
Usage: Emergency departments, intensive care units, trauma centers
Optional Features: Electronic drawer locking system, LED light, monitor holder, emergency alarm button

EMERGENCY CRASH CART (DELUXE)

CONTROLLED DRUG CABINET

Specifications

Material: Stainless Steel or powder-coated mild steel
Locking System: Dual-lock (mechanical key or combination/digital)
Dimensions: Varies – commonly ranges from 300mm x 300mm x 150mm to 600mm x 450mm x 200mm
Shelves: Fixed or adjustable internal shelves
Mounting: Wall-mountable with rear fixing holes
Finish: Matt stainless or antibacterial powder coat
Compliance: Meets local and international standards for controlled drug storage
Usage: Secure storage of controlled substances in medical and healthcare environments
Optional Features: Internal lockable compartments, audit trail lock systems, custom sizes

I.V. / SALINE STANDS

Specifications

Material: Stainless Steel 304 or powder-coated mild steel
Height Adjustment Range: Approx. 1350mm – 2100mm
Hooks: 2 or 4 stainless steel bottle hooks
Base: 4-legged or 5-legged base with reinforced support
Castors: 50mm – 75mm diameter swivel castors (optional locking)
Finish: Matt stainless steel or epoxy powder coating
Load Capacity: 2–5 kg per hook
Usage: For intravenous therapy and saline infusion in medical settings
Optional Add-ons: Infusion pump holder, basket for accessories, anti-static wheels

DRESSING TROLLEY (BOWL S.S.)

Specifications

Material: Stainless Steel
Shelf Dimensions: Approx. 600mm x 400mm
No. of Shelves: 2 with guard rails
Bowl Type: Integrated round stainless steel bowl
Height: Approx. 900mm – 1000mm
Mobility: 4 swivel castors (2 with brakes)
Finish: Matt or mirror polish stainless steel
Weight Capacity: 20–30 kg
Usage: Suitable for hospitals, clinics, treatment rooms
Optional Features: Additional bin/bottle holders, drawer units, or detachable accessories

DRESSING TROLLEY (BIN AND BOTTLE HOLDER)

Specifications

Material: Stainless Steel
Shelf Dimensions: Approx. 600mm x 400mm
No. of Shelves: 2 with full guard rails
Height: Approx. 900mm – 1000mm
Bin Holder: Welded or detachable stainless steel bracket for standard-size bins
Bottle Holder: Fixed or removable SS ring-type holder
Mobility: 4 swivel castors (2 with brakes)
Finish: Matt or mirror polish
Load Capacity: 20–30 kg
Usage: Hospitals, clinics, and emergency rooms for dressing and medical prep
Optional Add-ons: Removable plastic bin, SS bowl, waste chute, drawer unit

DRESSING TROLLEYS

Specifications

Material: Stainless Steel 304
Shelf Dimensions: Approx. 600mm x 400mm (varies with model)
No. of Shelves: 2 or more, with guard rails
Height: Approx. 900mm – 1000mm
Frame Type: Welded tubular frame for stability
Mobility: 4 swivel castors (2 with brakes)
Finish: Matt or mirror polish stainless steel
Load Capacity: 20–30 kg
Usage: Hospitals, clinics, treatment rooms for wound care and dressing procedures
Optional Add-ons: Stainless steel bowl & bucket, waste bin, drawer unit

MAYOTROLLEY (S.S.)

Specifications

Material: Stainless Steel
Tray Size: Approx. 600mm x 400mm
Height Adjustment Range: 900mm – 1300mm (manual or pneumatic)
Frame Base: Approx. 550mm x 500mm
Finish: Matt or mirror stainless steel
Mobility: 4 castors, 2 with brakes
Weight Load Capacity: 15–20 kg
Usage: Surgical environments, minor procedure setups, and clinical spaces
Cleaning Compatibility: Autoclavable and chemical disinfectant safe

MAYOTROLLEY (EPC)

Specifications

Tray Dimensions: Approx. 600mm x 400mm
Base Dimensions: Approx. 550mm x 500mm
Height Range: 900mm – 1300mm (adjustable)
Weight Capacity: 15–20 kg
Material: Stainless Steel 304
Finish: Matt or mirror polish
Mobility: Four swivel castors
Compliance: Hospital-grade standards
Application: Surgical, procedural, and clinical settings

INSTRUMENT TROLLEY WITH DRAWERS (S.S.)

Specifications:

Overall Dimensions: Approx. 750 mm (L) × 450 mm (W) × 900 mm (H)
Material: Stainless Steel
Shelves/Trays:
– stainless steel trays with raised edges
– Polished surface, welded to frame
Drawers:
– integrated drawers beneath top tray
– SS handles with optional label holders
– Mounted on stainless or nylon runners
Castors: 100 mm swivel type, anti-static rubber; 2 with brakes
Handle: Side push handle (optional)
Load Capacity: Approx. 25–40 kg per tray
Finish: Satin or mirror-polished stainless steel

INSTRUMENT TROLLEY (S.S.)

Specifications:

Overall Dimensions: Approx. 750 mm (L) × 450 mm (W) × 900 mm (H)
Material: Stainless Steel
Castors: 100 mm swivel type, noiseless rubber wheels; 2 with locking brakes
Handle: Integrated or side push handle (optional)
Load Capacity: 25–40 kg per tray
Finish: Polished/matte stainless steel finish

UTILITY TROLLEY (SS)

Specifications:

Overall Dimensions: Approx. 750 mm (L) × 450 mm (W) × 900 mm (H)
Material: Stainless Steel
Shelves:
– 2 or 3 fixed SS shelves
– Shelves with 3-side or full perimeter guard rails
Castors: 100 mm swivel type, noiseless rubber wheels; 2 with locking brakes
Load Capacity: 25–40 kg per shelf
Finish: Polished stainless steel, satin/matte finish
Accessories (Optional): IV pole, removable bins/trays, handlebar

UTILITY TROLLEY (EPC)

pecifications:

Overall Dimensions: Approx. 750 mm (L) × 450 mm (W) × 900 mm (H)
Frame Material: steel, epoxy powder coated
Shelves:
– 2 or 3 shelves
– Laminated or stainless steel tops
– Guard rails on 3 sides per shelf
Castors: 100 mm swivel type, 2 with locking brakes
Load Capacity: 20–30 kg per shelf
Finish: Epoxy powder coated, available in white or custom colors
Accessories (Optional): IV pole, utility bin holder, removable trays

MEDICINE TROLLEY WITHDRAWERS (S.S.)

pecifications:

Overall Dimensions: Approx. 750 mm (L) × 500 mm (W) × 900 mm (H)
Material: Stainless steel
Top Surface: Stainless steel with 3-side raised guard rails
Drawers:
– 4 to 6 stainless steel drawers
– Integrated handles with optional label slots
– Mounted on SS or nylon telescopic runners
Castors: 100 mm diameter, swivel type; 2 with locking brakes
Load Capacity: Approx. 30–40 kg
Finish: Polished stainless steel, smooth edges
Accessories (Optional):
– Central locking system
– Side utility bins or waste container holders
– Removable tray or drawer dividers

MEDICINE TROLLEY WITH DRAWERS (EPC)

Specifications:

Overall Dimensions: Approx. 750 mm (L) × 500 mm (W) × 900 mm (H)
Frame Material: CRCA steel, epoxy powder coated
Top Surface: Laminated or stainless steel, with 3-side raised rail
Drawers:
– 4 to 6 drawers (varying sizes)
– Individual handles with label slots
– Smooth telescopic runners
Castors: 100 mm swivel type, 2 with locking brakes
Side Rails: Stainless steel
Finish: Epoxy powder coated
Load Capacity: Approx. 25–30 kg
Accessories (Optional): Central lock system, waste bin holder, utility tray

MEDICINE SIDE RACK

Specifications:

Overall Dimensions: Approx. 450 mm (L) × 300 mm (W) × 900 mm (H)
Material: CRCA steel (epoxy powder coated) or stainless steel (304 grade)
Shelves: 3 to 4 fixed or adjustable open shelves
Finish:
– Powder coated (if steel)
– Polished surface (if stainless steel)
Mounting: Floor standing or wall-mounted (optional)
Mobility: Fixed legs with rubber stoppers or swivel castors (optional)
Load Capacity per Shelf: Approx. 5–10 kg
Accessories (Optional): Side railings, labeling holders

BED SIDE SCREEN (EPC)

Specifications:

Overall Dimensions:
– Each panel approx. 610 mm (W) × 1650 mm (H)
– Total width when fully extended: approx. 1830 mm
Frame Material: steel, epoxy powder coated
Curtain Material: Washable fabric or synthetic, flame-retardant
Panel Type: 3 or 4-fold (hinged)
Castors: 50 mm swivel type, anti-static (1 per leg)
Finish: Epoxy powder coated
Foldable: Yes, accordion-style for compact storage

OVERBED / FOOD TABLE (FIXED HEIGHT)

Specifications:

Top Dimensions: Approx. 760 mm (L) × 400 mm (W)
Height: Fixed at approx. 800 mm
Top Material: Laminated MDF or wood board with PVC edge banding
Frame Material: steel or stainless steel, powder coated or polished
Base Design: U or H-shaped for stability and under-bed clearance
Castors: 50 mm swivel type, 2 with optional brakes
Weight Capacity: 10–15 kg
Finish: Epoxy powder coated frame, laminated top

OVERBED / FOOD TABLE

Specifications:

Top Dimensions: Approx. 760 mm (L) × 400 mm (W)
Height Adjustment Range: 750 mm to 1050 mm
Top Material: Laminated wood or MDF with PVC edge banding
Frame Material: steel or stainless steel, epoxy powder coated or polished
Height Adjustment: Manual screw knob or pneumatic gas spring
Castors: 50 mm swivel type, 2 with locking brakes
Load Capacity: Approx. 10–15 kg
Finish: Powder coated frame, laminated top

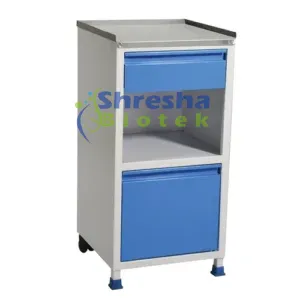

BED SIDE LOCKER (Premium)

Specifications:

Top Surface: ABS or laminated board with SS side rail (3 sides)
Body Material: steel, pre-treated and epoxy powder coated
Storage Configuration:
– 1 drawer with smooth telescopic runners
– 1 hinged-door cabinet
Side Rail: Stainless steel, raised on 3 sides
Castors: 50 mm – 75 mm swivel type, 2 with brakes
Ventilation: Perforated cabinet for internal air circulation
Finish: High-quality epoxy powder coating (custom colors available)
Load Capacity (Top Surface): Up to 25–30 kg

BED SIDE LOCKER (LAMINATED) WITH SIDE RAIL

Specifications:

Top Surface: High-pressure laminated board
Top Rail: Stainless steel, 3-sided raised barrier
Body Material: steel, epoxy powder coated
Storage:
– 1 sliding drawer with handle
– 1 cabinet with hinged door
Side Rail Height: Approx. 25–40 mm above surface level
Castors: 50 mm diameter, swivel type; 2 with optional brakes
Ventilation: Slotted or perforated cabinet design
Finish: Epoxy powder coated body, laminated top
Weight Capacity: Top supports up to 25 kg

BD SIDE LOCKER (LAMINATED)

Specifications:

Top Surface: High-pressure laminated board
Body Material: steel, pre-treated and epoxy powder coated
Storage Configuration:
– 1 sliding drawer
– 1 cabinet with hinged door
Castors: 50 mm swivel type, 2 with optional locking mechanism
Ventilation: Slotted panels or louvered door for airflow
Handles: Molded or metal ergonomic handles
Finish: Epoxy powder coated body, laminated top surface
Weight Capacity: Top surface supports up to 25 kg

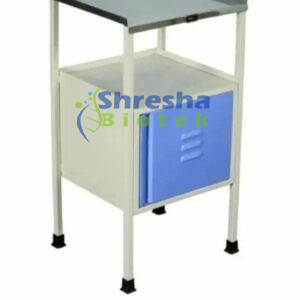

BED SIDE LOCKER BASIC WITH SS TOP

Specifications:

Top Surface: Stainless steel, rust-resistant
Body Material: steel, pre-treated and epoxy powder coated
Storage:
– 1 drawer with handle
– 1 enclosed cabinet with hinged door
Castors: 50 mm diameter, swiveling, 2 with brakes (optional)
Ventilation: Slotted cabinet for air circulation
Finish: Epoxy powder coated, available in various colors
Weight Capacity: Top surface supports up to 25 kg

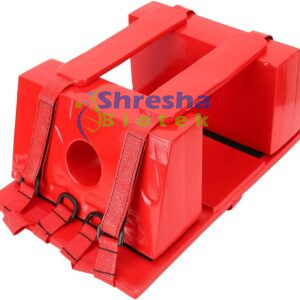

HEAD IMMOBILIZER

Specifications:

Material: High-density polyethylene or closed-cell foam
Components:
– 2 head blocks
– 1 base pad with Velcro
– 2 head straps (forehead and chin)
Weight: Approx. 1.5 – 2.5 kg
Straps: Adjustable with hook-and-loop fasteners
Radiolucent: Yes (X-ray, CT, MRI compatible)
Waterproof: Yes
Finish: Non-absorbent, easy-wipe surface

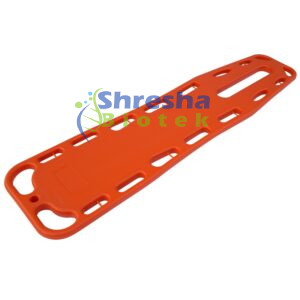

SPINE BOARD

Specifications:

Material: High-density polyethylene (HDPE) or ABS plastic
Weight Capacity: 150 – 180 kg
Net Weight: Approx. 6 – 8 kg
Handholds: 12–16 hand grips (integrated into the body)
Strap Slots: 3 or more, positioned for optimal restraint placement
Radiolucent: Yes (safe for X-ray, CT, and MRI scanning)
Waterproof: Yes (buoyant and suitable for water rescues)
Finish: Seamless, molded, smooth surface
Accessories (Optional): Head immobilizer, restraining straps

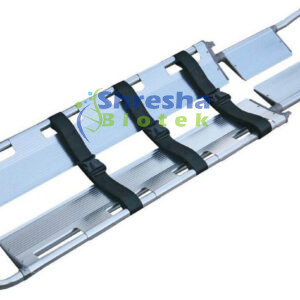

SCOOP STRETCHER

Specifications:

Folded Length (if foldable model): Approx. 1200 mm
Material: Aluminum alloy or high-strength polymer (X-ray translucent options available)
Weight Capacity: 150 – 180 kg
Net Weight: Approx. 7 – 9 kg
Locking Mechanism: Snap or twist-lock at head and foot ends
Handles: Integrated or extended grip handles on both halves
Finish: Anodized or powder-coated, corrosion-resistant
Accessories (Included/Optional): Safety belts or restraint straps

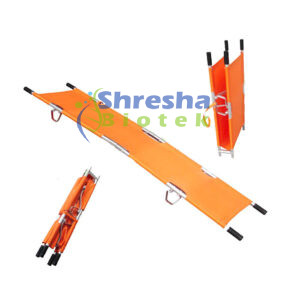

STRETCHER (DOUBLE FOLD)

Specifications:

Frame Material: Lightweight anodized aluminum alloy
Bed Material: Waterproof, fire-retardant, anti-tear PVC or Oxford fabric
Folding Mechanism: Center and or cross-fold design
Carrying Handles: 4 handles (2 on each side), non-slip grip
Weight Capacity: 150 – 180 kg
Net Weight: Approx. 7 – 9 kg
Finish: Anodized aluminum, corrosion-resistant
Accessories (Optional): Carry bag or straps for secure transport

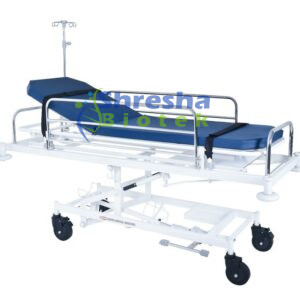

EMERGENCY and RECOVERY TROLLEY (MANUAL)

Specifications:

Top Platform: 2-section with backrest elevation (0°–75°)
Frame Material: steel (epoxy powder coated) or stainless steel
Backrest Adjustment: Manual
Mattress:
– Thickness: 50–75 mm
– Material: PU foam
– Cover: Waterproof, antibacterial PVC
Side Rails: Collapsible or swing-away, stainless steel or aluminum
Castors: 150 mm swivel wheels, 2 with locking brakes
Height Adjustment: Manual crank or fixed
IV Pole: Stainless steel, height adjustable
Oxygen Cylinder Holder: Integrated side or underframe holder
Corner Buffers: Rubberized, impact-resistant
Safe Working Load: 150 – 200 kg
Finish: Epoxy powder coated or polished stainless steel

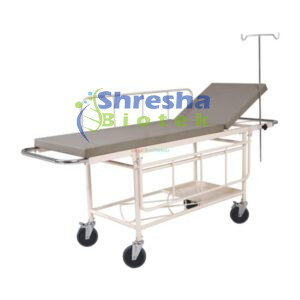

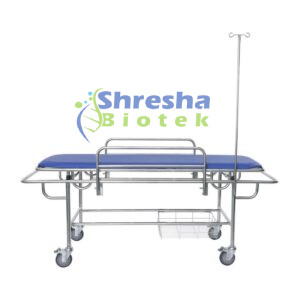

STRETCHER TROLLEY WITH MATTRESS (2 SECTION)

Specifications:

Top Platform: 2-section with adjustable backrest (0°–75°)
Frame Material: CRCA steel or stainless steel (304 grade), epoxy powder coated or polished
Mattress:
– Thickness: 50–75 mm
– Material: High-density PU foam
– Cover: Waterproof, antimicrobial PVC
Side Rails: Collapsible, aluminum or stainless steel
Backrest Adjustment: Manual via gas spring or ratchet
Castors: 150 mm diameter, swivel type, 2 with brakes
Load Capacity: 150 – 200 kg
IV Pole: Height adjustable, stainless steel
Oxygen Cylinder Holder: Attached, compatible with standard cylinders
Finish: Epoxy powder coated (steel) or mirror finish (SS)

STRETCHER TROLLEY WITH MATTRESS

Specifications:

Frame Material: steel or stainless steel, epoxy powder coated or polished
Top Platform: Mild steel or stainless steel sheet with mattress
Mattress Thickness: 50–75 mm, high-density PU foam with waterproof PVC cover
Side Rails: Collapsible or swing-down, aluminum or stainless steel
Castors: 150 mm diameter, swivel type, 2 with brakes
Load Capacity: 150 – 200 kg
IV Pole: Adjustable, stainless steel
Oxygen Cylinder Holder: Attached or optional
Finish: Epoxy powder coated or stainless steel polished

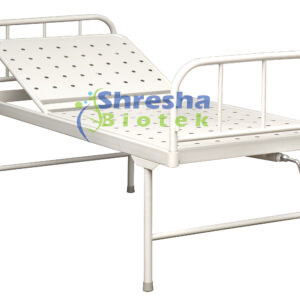

SEMI FOWLER BEDS (General)

Specifications:

Backrest Elevation: 0° – 75°
Platform Type: Two-section perforated steel
Frame Material: steel with epoxy powder coating
Head & Foot Panels: Mild steel, fixed or detachable
Side Rails: Optional
Castors: 100–125 mm diameter, 2 with brakes
Crank Mechanism: Single manual crank with foldable handle
Safe Working Load: 180 – 200 kg
Finish: Epoxy powder coated, corrosion-resistant
Included Accessories: IV pole socket, drainage/urine bag hooks

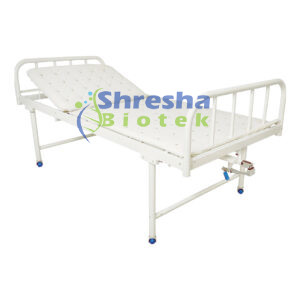

SEMI FOWLER BEDS (Deluxe)

Specifications:

Backrest Elevation: 0° – 75°
Platform Type: Two-section perforated steel platform
Frame Material: steel with epoxy powder coating
Head & Foot Panels: ABS, detachable with secure locking
Side Rails: Collapsible or swing-down (aluminum or ABS)
Castors: 125 mm diameter, 2 with brakes
Crank Mechanism: Single manual crank with foldable handle
Safe Working Load: 180 – 200 kg
Finish: Pre-treated and epoxy powder coated
Accessories Included: IV pole socket, drainage bag hooks, mattress retainers

SEMI FOWLER BED (Premium)

Specifications:

Backrest Adjustment: 0° – 75°
Platform Type: Two-section perforated steel
Frame Material: steel with epoxy powder coating
Head & Foot Panels: ABS, detachable and locking
Side Rails: Collapsible, aluminum or ABS
Castors: 125 mm diameter, 2 with brakes
Crank System: Single manual crank with foldable handle
Safe Working Load: 180 – 200 kg
Finish: Pre-treated and epoxy powder coated
Included Accessories: IV pole socket, drainage bag hooks, mattress retainers

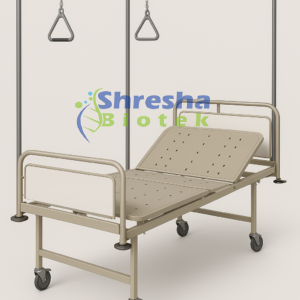

FOWLER BED (GENERAL) WITH BALKAN FRAME

Specifications:

Backrest Elevation: 0° – 75°
Knee Rest Elevation: 0° – 35°
Platform Type: Four-section perforated CRCA steel
Frame Material: CRCA steel with epoxy powder coating
Head & Foot Panels: Mild steel or ABS (optional)
Castors: 100 – 125 mm diameter, 2 with brakes
Crank System: 2 smooth manual cranks with foldable handles
Balkan Frame: Overhead tubular structure, fixed to bed, with pulleys and traction setup points
Traction Points: Multiple horizontal and vertical attachment points
Safe Working Load: 180 – 200 kg
Included Accessories: IV pole socket, drainage hooks, Balkan traction frame

FOWLER BEDS (General)

Specifications:

Backrest Adjustment: 0° – 75°
Knee Rest Adjustment: 0° – 35°
Platform Type: Four-section, perforated CRCA steel platform
Frame Material: CRCA steel, pre-treated and powder coated
Head & Foot Panels: Mild steel (standard), ABS (optional)
Side Rails: Optional (fixed or collapsible, aluminum or steel)
Castors: 100 – 125 mm diameter, 2 with brakes
Crank System: 2 manual cranks with foldable handles
Safe Working Load: 180 – 200 kg
Finish: Epoxy powder coated, corrosion-resistant
Accessories Included: IV pole provision, drainage bag hooks

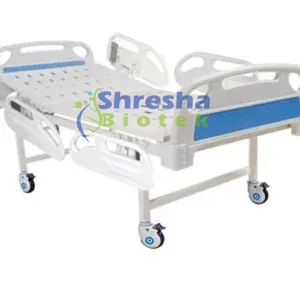

FOWLER BEDS (Deluxe)

Specifications:

Backrest Angle: 0° – 75°
Knee Rest Angle: 0° – 35°
Platform Type: 4-section, ventilated
Frame Material: steel with epoxy coating
Head & Foot Panels: ABS, detachable with secure locking system
Side Rails: Collapsible or swing-down, aluminum or ABS
Safe Working Load: 200 – 250 kg
Accessories Included: IV pole socket, drainage bag holders, mattress retainers
