RBC/WBC BLOOD DILUTING PIPETTES

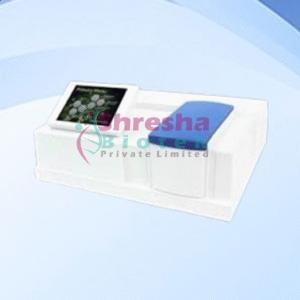

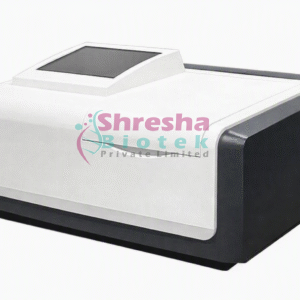

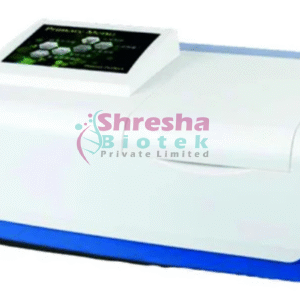

Double Beam Spectrophotometer UV/VIS

Model	DR-UV-1900	DR-UV-1900S
Make	DR Labs	DR Labs
Bandwidth	2 nm	0.5, 1.0, 2.0, 4.0 nm
Cell Holder	4 sample holder moveable	4 sample holder moveable
Optical System	Double Beam (1200 lines/mm Grating)	Double Beam (1200 lines/mm Grating)
Wavelength Range	190 ~ 1100 nm	190 ~ 1100 nm
Wavelength Accuracy	± 0.3 nm	± 0.3 nm
Wavelength Repeatability	± 0.2 nm	± 0.2 nm
Scanning Speed	High, Medium, Low (Max. 3000 nm/min)	High, Medium, Low (Max. 3000 nm/min)
Photometric Range	-4 ~ 4A, 0~999.9%T, 0~9999C, 1~9999F	-4 ~ 4A, 0~999.9%T, 0~9999C, 1~9999F
Photometric Accuracy (T)	± 0.3%T	± 0.3%T
Photometric Repeatability	0.2%T	0.2%T
Stability	± 0.001 A/h (700 nm, preheating for 1 hr)	± 0.001 A/h (700 nm, preheating for 1 hr)
Photometric Accuracy(A)	≤±0.002A(0~0.5A), ≤±0.004A(0.5~1A), ≤±0.006A(>2.0)	≤±0.002A(0~0.5A), ≤±0.004A(0.5~1A), ≤±0.006A(>2.0)
Baseline Flatness & noise	≤±0.001A/h	≤±0.001A/h
Stray Light	<0.05%T @ 220nm, 360nm	<0.05%T @ 220nm, 360nm
Data Output	USB	USB
Printer Port	Parallel Port	Parallel Port
Display	Touchscreen	Touchscreen
Lamps	D2 & Tungsten Halogen Lamp	D2 & Tungsten Halogen Lamp
Detector	Silicone Photodiode	Silicone Photodiode
Power Supply	AC 220V / 50Hz	AC 220V / 50Hz
Dimensions & Weight	650 x 450 x 220mm & 25kg	650 x 450 x 220mm & 25kg

SALIENT FEATURES:
• Large back light LCD display shows mode indicator,
ph value, temperature
•Up to 3 point push -button calibration with
automatic buffer recognition
•Selectable pH buffer standards and temperature units.
•Automatically calculates and display electrode slope
after calibration
•Automatic temperature compensation (ATC) ensure
highly accurate measurements over the entire range.
•Automatic endpoint function freezes the stable
measured value
•Setup menu allows setting the pH buffer group,
number of calibration points, temperature unit,
auto-power off, etc.
•Reset function can resumes all setting to factory
default value
Dr Labs DR-PH-100 is an easy-to-use benchtop pH meter designed for daily testing and quality control.
This meter has a clear and bright back light LCD display that show the measured pH value, temperature,
mode indicators.

PEN TYPE pH METER

Dr Labs pH-030 New Arrival with Precision Glass Bulb Electrode Portable PH Meter Liquid PH Alkalinity Value Digital Water Purity Tester Hydro tester Pen with Care Box & Calibration Screw Driver Suitable for Household RO Water Purifiers Filters, Drinking Water, Swimming Pools, Spas, Food, Drink, Gardening, Aquariums, Hydroponics A pH meter, also called a sensor or tester, is a device used to measure the alkalinity of a substance with a single-line LCD screen, a replaceable electrode, and a low power demand. A pH meter used to measure the pH of substance such as water, food, beer, or wine in laboratory, industrial, and food applications.

PEN TYPE TDS METER

PEN TYPE TDS/EC METER

3-In-1 Digital TDS meter provides accurate readings for TDS (Total Dissolved Solids) EC (Electrical Conductivity) and temperature. Professional, Accurate, and Precise 3-in-1 TDS, EC, and Water Temperature Meter. The TDS meter has automatic temperature compensation in measurement mode. 9 minutes no operation, the meter will automatically shut down. Save power, extend battery life.

CERAMIC HOT PLATE MAGNETIC STIRRER

Model	DR-HMS-5LC
Make	DR Labs
Display	LCD
Max. Volume (ml)	5000
Speed (RPM)	200-2000 RPM
Minimum Resolution (RPM)	100 RPM
Top Plate Size	190 x 190 mm
Plate Material	Ceramic
Max. Temp. (Plate surface)	300°C
Temp. Sensor	PT100
Temp. Controller	PID
Temp. Resolution	0.1°C
Temp. Accuracy	±0.5°C ( <100°C) ± 1° C (<300°C)
Timer	Yes
Power Wattage	Heating: 600 W, Stirring: 20 W
Power Supply	AC 220V / 50 Hz
Dimensions & Weight	300 x 190 x 126 & 5 kgs

DIGITAL HOT PLATE MAGNETIC STIRRER (Steel Top)

Model	DR-MS-300
Make	DR Labs
Display	LCD
Max. Volume (ml)	2000
Speed (RPM)	1250 RPM
Speed Display Style	Graph (Not numeric value)
Top Plate Size	135 x 135 mm
Plate Material	Steel
Max. Temp. (Plate surface)	±1°C ( <100°C) ± 3° C (<300°C)
Temp. Accuracy	0~50°C, Automatic
Timer	999 Minutes
Power Supply	AC 220V / 50 Hz
Dimensions & Weight	230 x 180 x 120 & 2.6 kgs

MICROPROCESSOR WATER QUALITY MULTIPARAMETER

Model	DR-GMP-30
Make	DR Labs
pH Range	-2.000~20.000 pH
Resolution	0.001, 0.01, 0.1 pH, Selectable
Accuracy & Calibration Points	±0.002 pH & up to 5 points
pH buffer Option	USA,(pH 1.68, 4.01, 7.00 , 10.01, 12.45)
	NIST (pH 1.68/4.01/6.86/9.18/12.45)
	DIN (pH 1.09, 4.65, 6.79, 9.23, 12.75) or user defined
ORP (mV) Range	0 ̴ ±1999.9 mV
ORP Calibration	1 point calibration
ORP Resolution & Accuracy	0.1, 1mV Selectable & ±0.2 mV
ORP Measuring Mode	Absolute mV or Relative mV
Conductivity Range	0 ̴ 200mS / cm
Resolution & Accuracy	0.01 / 0.1 / 1 & ±0.5% F Full Scale
Conductivity Cell Constant	0.01/1/10 user defined
Temperature Coefficient	0.0 ̴ 10.0 % per °C
Conductivity Calibration Points	Up to 5 points
Conductivity Calibration Solution	10uS/cm, 48uS/cm, 1413uS/cm, 12.88mS/cm, 111.8mS/cm
Compensation Modes	Linear or pure water
TDS Range	0 ̴ 10ppt (Max. 200ppt, Depending on factor setting
Resolution & Accuracy	0.01/0.1/1 & ± 1% Full Scale
TDS Factor	0.0 ̴ 1.0
Salinity Range	0 ~ 80 ppt
Salinity Resolution & Accuracy	0.01/0.1/1 & ± 1% Full Scale
Salinity Measurement Mode	Practical Salinity (PSU) or Seawater Measurement Standard (ppt)
Resistivity Range	0 ̴ 100MΩ
Resistivity Resolution & Accuracy	1/0.1/0.01 & ± 1% Full size
Temp. Range	0 ̴ 100 °C, /32 ̴ 212°F
Temp. Compensation	Automatic or Manual
Temp. Accuracy	± 0.5 °C, ±0.9 °F
Dimensions & Weight	210 x 188 x 60mm & 1.2kg

ION /pH METER

Smart pH Meter (3 point calibration)

Model	DR-PH-100
Make	DR Labs
pH Range	-2 to 16.00 pH
pH Resolution	0.01 pH
pH Accuracy	± 0.01 pH
Calibration Points	up to 3 points
pH Buffer options	USA (pH 4.01, 7.00, 10.01) or NIST
ORP Range (mV)	± 1999 mV
ORP Accuracy(mV)	± 1% FS ±1 digit
ORP Resolution(mV)	1 mV
Temp. Range	0 to 105°C
Temp. Accuracy	± 0.5°C
Temp. Resolution	0.1°C
Temp. Compensation	0 to 100°C, Manual/Automatic
Hold Function	Available
Auto Off function	Available
Electrode Connector	BNC
Display	Backlight LCD
Dimensions & Weight	210 x 205 x 75 mm & 1.5 kg

MOISTURE ANALYZER

Model	DR-MB-7000
Make	DR Labs
Capacity	120g
Moisture Range	0~100%
Moisture Resolution	0.02% ~ 0.2%(sample≥2g)
Moisture Accuracy	±0.2%
Readability	0.001 g (1 mg)
Repeatability	±0.001 g
Linearity	±0.002 g
Minimum Capacity	0.01g
Display	Touchscreen
Pan Size	Ø 90 mm
Sensor	German Loadcell
Calibration	External
Operating Temperature	5 to 35°C
Heating Source	Halogen Lamp
Analysis Method	Manual, Timed, Automatic
Temp. Sensor	PT100
Temp. Setting Range	60 to 200°C
Temp. Setting Resolution	1°C
Time Setting	2 to 100 mins
Sample Library	Yes, 100 sample methods can be stored
Drying Modes	Standard, Fast & Soft
Data Output	RS-232 & USB-A
No. of Storage	100 memory
Power Supply	AC 220V / 50 Hz
Dimensions & Weight	350 x 215 x 192 mm & 4.5 kg

ANALYTICAL BALANCE -0.0001 g (0.1 mg)

Model	DR-MA-220	DR-MA-320
Capacity	220g	320g
Make	DR Labs	DR Labs
Readablity	0.0001g (0.1mg)	0.0001g (0.1mg)
Linearity	± 0.0003g	± 0.0003g
Minimum Capacity	0.01g	0.01g
Display	LCD	LCD
Pan Size	Ø 90 mm	Ø 90 mm
Response Time	4-6 sec	4-6 sec
Calibration	Internal Calibration	Internal Calibration
Tare Range	Full	Full
Operating Temperature	15 to 30°C	15 to 30°C
Operating Humidity	50-70% R.H	50-70% R.H
Warm Up time	30 min	30 min
Units	g, ct, ozt, oz, GN, dwt, lb, mg	g, ct, ozt, oz, GN, dwt, lb, mg
Key Sound	Yes	Yes
Weighing Chamber Height	210 mm
Baud Rate	1200, 2400, 4800, 9600	1200, 2400, 4800, 9600
Class	I	I
Interface	RS-232C	RS-232C
Date Output	Command & Continuous	Command & Continuous
Power Supply	AC 220V / 50 Hz	AC 220V / 50 Hz
Dimensions & Weight	220 x 360 x 345 mm & 9.5 kg	220 x 360 x 345 mm & 9.5 kg

HIGH PRECISION BALANCE -0.001 g (1 mg)

PRECISION BALANCE

Model	DR-PG-300	DR-PG-500
Make	DR Labs	DR Labs
Capacity	300 g	500 g
Readability (d)	0.001g (1mg)	0.001g (1mg)
Repeatability	0.001 g	0.001 g
Linearity	0.002 g	0.002 g
Pan Size	Ø 90 mm	Ø 90 mm
Response Time	3 – 4 sec	3 – 4 sec
Calibration	External	External
Display	Backlight LCD	Backlight LCD
Tara Range	Full	Full
Operating emperature	10 to 40°C	10 to 40°C
Power supply	AC 220V / 50Hz	AC 220V / 50Hz
Dimension	325 x 300 x 225	325 x 300 x 225
Weight	4kg	4kg

BABY WEIGHING SCALE -DENSITY KIT

Digital Portable Baby Weighing Scale/Weight Machine with Baby Tray (NEW MODEL) FEATURES: *Multi-Function Baby Weighing Scale with Min. Capacity of 10g & Max. Capacity of 100kg. *Equipped with a high precision “Stain-Gauge” Sensor and High Capability CPU to ensure Weight Accuracy. *Designed For Comfort The Smart Weigh Digital Baby Scale Is Beautifully Designed To Ensure The Comfort Of Your Baby. *TARE Feature i.e. Weigh the baby on a blanket or towel and press tare button to get the Baby Weight without any added weight. *Dual Usage Support i.e. Remove the Baby Tray and it can be used as a normal weighing scale. *Keep Track of Your Baby’s Weight To Make Sure Your Baby Is Getting The Proper Nutrition And Is Being Fed The Correct Amount.

DIGITAL PORTABLE REFRACTOMETER

WOOD MOISTURE METER

General

Brand	DR Labs
Model Number	0-99.9% Two Pins Digital Wood Moisture Meter Humidity Tester Timber Damp Detector digital moisture meter for wood digital
Type	Pin-Type
Measurement Depth	10 mm
Meter Type	Digital
Accuracy	.5
Functions	0-99.9% Two Pins Digital Wood Moisture Meter Humidity Tester Timber Damp Detector 0.5 percent Accuracy Moisture Meter Test, Employ contact pin resistance to test, adopt high-precision electron components to test the moisture value on over one hundred kinds of common wood by group internally – In appearance, use ergonomics. It is easy and fast for user to use the meter to test with simple key operation mode and comfortable hand feeling, Can be used to test all kinds of wood paperboard and dry cargo – Large LCD display of wood moisture value – Built-in four kinds of patterns with precise testing – Employ ergonomics design to adapt various special occasions, Electrode length: 10mm – Measurement principle: electrical resistance – Electrode pins: integrated – Auto power off: after about 10 minutes
Suitable For	wood
Model Name	Wood Moisture Meter, Digital 4 Calibrated Detector
Measurement Range	99.9

LUX METER

ROTARY EVAPORTATOR

SPECIFICATIONS:

Model	DR-20RE	DR-30RE	DR-50RE
Rotating Speed	Color LCD Screen; 0~310rpm/min	Color LCD Screen; 0~310rpm/min	Color LCD Screen; 0~200rpm/min
Evap. Capacity	Max.25ml/min (H2O)	Max.27ml/min (H2O)	Max.43ml/min (H2O)
Temp. range/precision	Microcomputer PID controller; Water Bath	RT.-99 ºC±0.5 ºC Oil Bath RT.-210ºC±2ºC
Bath Material	Integral Teflon compound heating bath with safe handle, which prevents from scald; the medium sized bath volume makes distillation fast.
Bath Size	Dia 23×13cm	Dia 26×15cm	Dia 29×17cm
Positive&Negative Rotating	Intermittent positive and negative rotating function with timing function (0-60s) for drying process
Lif	Automatic balance lifting which can be controlled by either button-press or Color LCD screen; the lifting length is 150mm, with fixed safety distance of 60mm, which prevents crashing.
Temp. Set	Rotating switch coding for temperature setting with big LCD screen display.
Safety	Anti-dry prevention function which makes flask automatic lifting; instrument will stop at the set timing (0-999min); automatic lifting and standby alarm protection in abnormal or over temperature state.
Heater Powe	1.5KW	1.5KW	1.5KW
Sealing	Imported PTFE and special complex compounded with special technique, which ensures good sealing and improves the anti-corrosion and durability property.
Condenser	Vertical 3-layered coil condenser with big condensation area, equipped with drip point and backflow prevention, which effectively increases the evaporation efficiency.
Condense Area	0.18m 2	0.21m2	0.31m 2
Environment Temp	5ºC~40 ºC

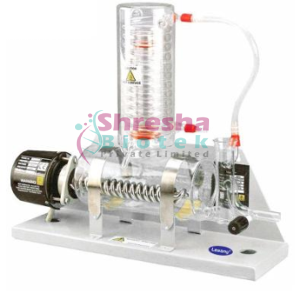

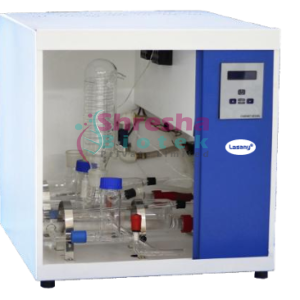

BOROSILICATE GLASS DOUBLE DISTILLATION UNIT

Technical Specifications

Model DR-BDDU
Parameters	Values
Specific Conductivity	0.8-1 μs/cm
Biological Activity (distillate quality)	Pyrogen Free
Organic Matter	Nil
Total Solids	0.1 mg/ltr
Silica	<0.01 mg/ltr
Output Capacity (Approx.)	2.5 – 4 Ltr/hr
Power Rating (Total)	6 KW
Cooling Water Consumption (Approx.)	150 Ltr/Hr

DIGITAL ULTRA SONIC CLEANER

Specification	Details
Model	DR-UC-10P
Make	DR Labs
Theoretical Capacity	10 Litre
Actual Water Filling	8 Litre
Tank Size (mm)	300 x 240 x 150
Overall Size (mm)	330 x 270 x 310
Ultrasonic Power	420 W
Heating Power	1000 W
Tank, Body, Lid Material	Stainless Steel 304
Time Setting	1 to 99 mins / Always On
Heating Temp.	Ambient to 80°C
Display & Ultrasonic Frequency	LED Display, 40 kHz
Power Supply	220v / 50 Hz
Weight	9 kg

MICROPROCESSOR PHOTO CALORIMETER

Set Zero (Auto Zero) : By press push switch with audio response
Wavelength Range filters : 400 700 nm
: Built-in 9 Digital filters
Filters Wavelength : 405 nm, 430nm, 450nm, 480nm,510nm,
520nm, 546nm, 576nm, 630nm
Display Parameters : O.D., %T, Wavelenght
Battery Indicator : Graphical Indication
Detector : Silicon Photo Diode
Accuracy : + 0.01 O.D.
Stability : + 0.02 O.D. Per Hour
Light Source : Highly accurate LED source
Volume : 1 ml Minimum
Dimension : LxBxH (Approx.)
Weight : 1 kgs (Approx.)
Power : 230 V+ 10% Ac, 50 Hz
Battery Backup : 7.2 V Li-ion Re-chargeable battery
Accessories : Set of test tube 5 Nos.
Test tube holder :1 No.

MICROPROCESSOR DRY BATH INCUBATOR

Model No.	DR-DBI
Display	16×2 Alpha Numeric LCD
Temperature Range	Ambient to 70° C
Temperature Resolution	0.1° C
Inbuilt timer	0 to 99 Minute Timer
Android App	NA
Test Save Option	NA
Power	220 v ±10V AC
Dimensions (L x B x H)	275 x 187 x 94mm(Approx.)
Weight	1.5kg Approx.
Accessories	Instruction Manual

SMART HAEMOGLOBIN METER

Model No.	DR- ION-3
Measurement Method	Cyanmethemoglobin Method (Optional Alkaline Hematin D Also Available on Request)
Display	16×2 Alphanumeric Display
Wavelength	540nm
Calibration	Automatic by Press CAL Key
Key Set Zero	Automatic by Push Switch
Measuring Range	0.0 to 30.0 g/dl
Photo Detector	Silicon Photodiode
Accuracy	±4%
Light Source	540 nm Green LED
Frequency	50 Hz
Cuvette	12×65 mm Round Cuvette
Android App	Available
Test Report Save Option	Available/ Unlimited
Test Tube Holder	01 Nos.
Set Of Round Cuvettes	05 Nos.
Accessories	Operation Manual
Power	220V ±10V AC
Dimension	275 x 187 x 94 mm (Approx)
Weight	0.8 Kg Approx.

MICROPROCESSOR TURBIDITY METER

Model	DR-TB-200
Make	DR Labs
Turbidity Range	0~2000 NTU, 0~500 EBC, 0~9999 ASBC
Resolution	0.01 (0~99NTU) 0.1 (100~999 NTU) 1(1000~2000NTU)
Accuracy	±2% of reading (0~500NTU), ±3% of reading (501~2000NTU)
Calibration Points	2 to 7 points
Calibration Standards	0.02, 10, 200, 500, 1000, 1500, 2000 NTU
TSS Range	Depends on TSS conversion factor
TSS Accuracy	3% of reading
Light Source	Infrared-emitting diode (850nm)
Detector	Silicone Photodiode
Stray Light	< 0.02 NTU
Sample Vial	60(H) x 25(dia) mm
Memory & Data Output	200 data sets & USB Data output
Operating Temperature	0~50°C
Display	4.5″ TFT LCD
Power Supply	DC12V Power Adapter
Dimensions & Weight	250 x 177 x 96 mm & 1.2 kg

MICROPROCESSOR COLONY COUNTER

CONDUCTIVITY / TDS METER

Model	DR-TDS-100
Make	DR Labs
Conductivity Range	0~20.00, 200.0, 2000µS/cm, 20.00, 200.0 mS/cm (5 auto ranges)
Conductivity Resolution	0.01, 0.1, 1
Conductivity Accuracy	± 1% F.S
Calibration Points	up to 3 points
Buffer options	10µS/cm, 84µS/cm, 1413µS/cm, 12.88mS/cm, 111.8mS/cm
Temp. Compensation	0 to 100°C, Manual/Automatic
Temp. Coefficient	0.0~10.0%/°C
Cell Constant	K=0.1, 1, 10
Normalization Temp.	25°C
TDS Range	0~10 ppt (max. 200 ppt, depending on factor setting & ec range
TDS Accuracy	± 1% F.S
TDS Factor	0.1 to 1.0 (Default 0.5)
Temp. Range	0 to 105°C
Temp. Resolution	0.1°C
Temp. Accuracy	±0.5°C
Hold & Auto Off function	Both Available
Electrode Connector	3 pin
Display	Backlight LCD
Power	DC9V, AC220V, 50 Hz
Dimensions & Weight	210 x 205 x 75 mm & 1.5 kg

ICE FLAKER

Model	DR-IF-30	DR-IF-50	DR-IF-100	DR-IF-150
Make	DR Labs	DR Labs	DR Labs	DR Labs
Capacity of Ice Flaker	30 kg / 24 hr	50 kg / 24 hr	100 kg / 24 hr	150 kg / 24 hr
Storage Capacity	10 kgs	15 kgs	40 kgs	40 kgs
Storage Bin	ABS Plastic	ABS Plastic	ABS Plastic	ABS Plastic
Cooling Method	Air (inside R290A refrigerant)	Air (inside R290A refrigerant)	Air (inside R290A refrigerant)	Air (inside R290A refrigerant)
Ambient Temperature	Below 25°C for optimum working	Below 25°C for optimum working	Below 25°C for optimum working	Below 25°C for optimum working
Construction	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel
Noise Level	≤52 dB	≤52 dB	≤52 dB	≤52 dB
Water Supply	3/4″ BSP	3/4″ BSP	3/4″ BSP	3/4″ BSP
Refrigerant	R290A	R290A	R290A	R290A
Power Supply	AC 220 V / 50 Hz	AC 220 V / 50 Hz	AC 220 V / 50 Hz	AC 220 V / 50 Hz
Input Power	300 W	380 W	520 W	680 W
Dimensions	330 x 470 x 605 mm	400 x 540 x 700 mm	500 x 611 x 950 mm	500 x 611 x 950 mm
Gross Weight	26 kgs	36 kgs	58 kgs	60 kgs

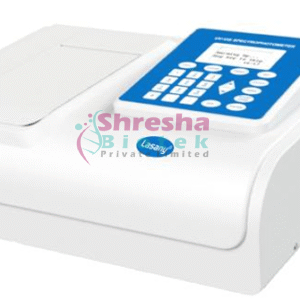

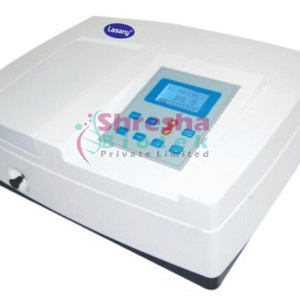

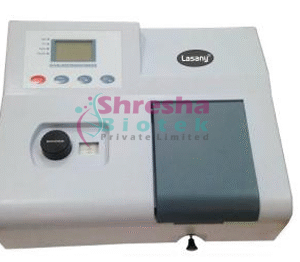

SINGLE BEAM UV -VIS SPECTROPHOTOMETER

Model	DR-UV-300
Make	DR Labs
Optical System	Single Beam, Grating 1200 lines/mm
Wavelength Range	190~1100 nm
Spectral Bandwidth	2 nm
Wavelength Setting	Automatic
Wavelength Accuracy	± 0.3 nm
Wavelength Repeatability	± 0.1 nm
Cell Holder	10mm manual 4-cell holder
Photometric Range	-0.3 ~ 3A, 0~200%T, 0~9999C
Photometric Accuracy	0.05% T
Photometric Repeatability	±0.2% T
Stray Light	≤0.05%T
Stability	±0.002A/h @500nm
Baseline Flatness	±0.002A/h @500nm
Display	128 * 64 LCD
Photometric Mode	T, A, C
Detector	Imported Japanese Silicon Photodiode
Light Source	Imported Japanese D2 & Tungsten Halogen Lamp
Output	USB Port & Parallel Port
Power Supply	AC 220V / 50Hz
Dimensions & Weight	700 × 580 × 340 mm & 20 kgs

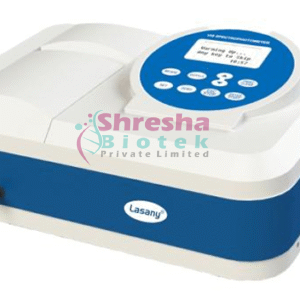

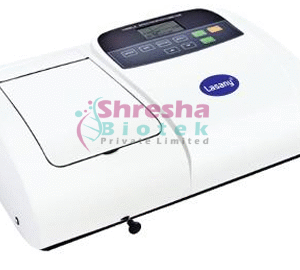

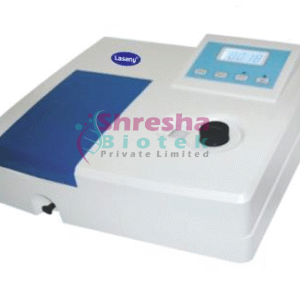

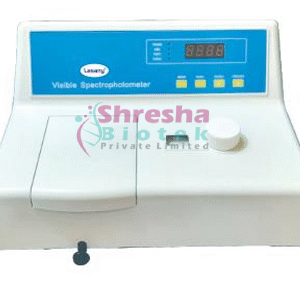

SINGLE BEAM VISIBLE SPECTROPHOTOMETER

Model	DR-V-721
Make	DR Labs
Optical System	CT Single Beam, Grating 1200 lines/mm
Wavelength Range	320~1020 nm
Spectral Bandwidth	2 nm
Wavelength Interval	1 nm
Wavelength Accuracy	± 2 nm
Wavelength Repeatability	1 nm
Photometric Accuracy	± 1% T
Photometric Repeatability	0.5% T
Photometric Range	0 – 1.999A, 0-199.9%T
Stray Light	≤0.3%T@340nm
Stability	±0.004A/h @500nm
Display	4 Digit LCD
Photometric Mode	T, A, C
Detector	Silicon Photodiode
Light Source	Tungsten Lamp
Power Supply	AC 220V / 50Hz
Dimensions & Weight	450 × 520 × 320 mm & 10 kgs

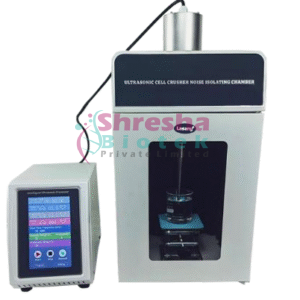

PROBE SONICATOR

Model	DR-P-650
Make	DR Labs
Frequency	18-28 kHz Auto Tracking
Frequency tracking accuracy	1 Hz real-time tracking
Processing Capacity	0.5ml to 500 ml
Standard Probe	Ø 6 mm (1/4″)
Display8″ Touchscreen	8″ Touchscreen
Display Function	Temperature, Power, Time, Gap Time
Temperature Range	0-99°C
Timer	Yes upto 99 hours, 59 mins, 59 secs
Alarm Function	Over temperature, over current, over load, transducer abnormality, etc.
Operating Table	Electrically operated motorized
Lighting	Available inside cabinet
Data Memory	9 memory group
Output Power	650W (adjustable)
Power Source	AC 220V / 50 Hz
Dimensions & Weight	280 x 280 x 490 mm – 10.2 kg

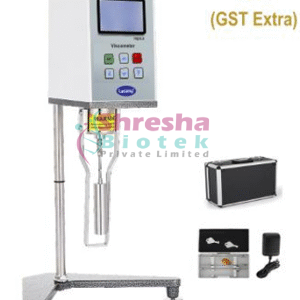

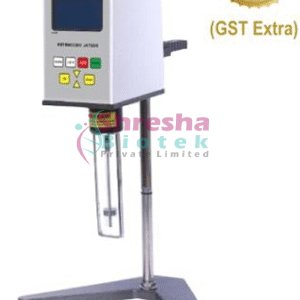

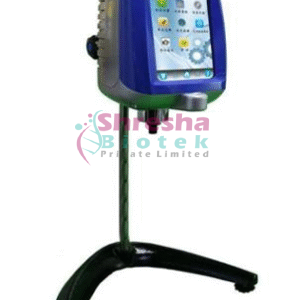

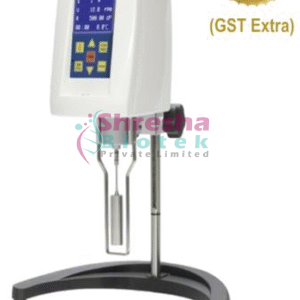

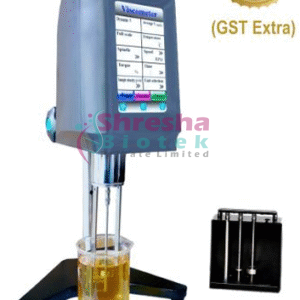

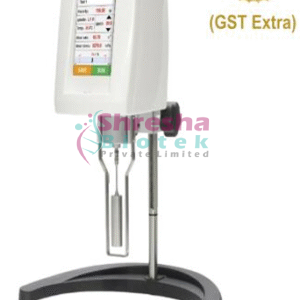

DIGTAL VISCOMETER

Model	DR-V-60
Make	DR Labs
Measuring Range (mpa.s)	20 to 20,00,000 mpa.s
Measurement Resolution	0.01 mpa.s (Full Scale)
Speeds	0.3, 0.6, 1.5, 3, 6, 12, 30, 60 RPM
No. of Speed	8 speed settings
No. of Standard Spindle	4
Display	LCD
Auto Scan Function	Can automatically scan and recommend the preferred combination of rotor and speed
Temp. Monitoring	Optional – Feature available
Measurement Accuracy	±1% F.S
Repeatability	± 0.5% F.S
Output	RS 232C Interface
Power Supply	AC 220V / 50 Hz
Dimensions & Weight	300 × 300 × 450 mm & 9 kgs

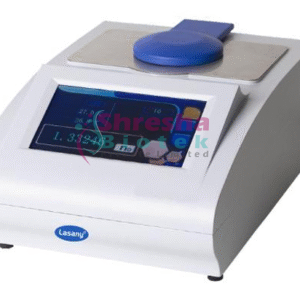

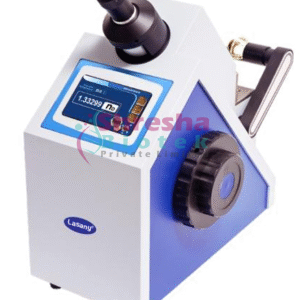

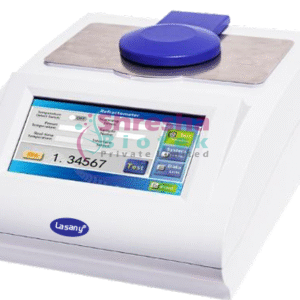

DIGITAL ABBE REFRACTRO METER

Model	DR-WYA-2S
Make	DR Labs
Measurement range refractive index nD	1.3000 to 1.7000
Measurement range refractive index Brix	0 to 100 % Brix
Accuracy refractive index nD	≤ ±0.0002
Accuracy (Dissolve solids Brix)	± ≤ 0.1%
Temperature Resolution	0.1°C
Temperature Range (Min 0.1°C)	0~50°C
Correcting range of brix versus	15~45°C
Usage Temperature Range	Ambient to 35°C
Interface	RS232C
Power	AC 220V / 50 Hz
Dimensions & Weight	370 x 240 x 470 mm – 12 kg

DIGITAL ORBITAL SHAKER

SPECIFICATIONS:

Model	DR-OS-300	DR-OS-30
Shaking Motion	Orbital	Orbital
Shaking orbit	20mm	40mm
Shaking Speed Range	{01-300 RPM (400-600 RPM Optional)}	30-200 RPM
Timer Range	99h 59 min digital timer	99h 59 min digital timer
Operation	Continuous/ Timer based	Continuous/ Timer based
Display	6×2 Numeric LCD	6×2 Numeric LCD
Max Load Capacity	10 Kg	10 Kg
Platform Size & Type	420mm x 420mm & Universal	12” x 12” (inches)
Overall dimensions	W-410 x L-530 x H-200 with Lotus Clamp	W-410 x L-530 x H-200 with Lotus Clamp
Power Consumption	10 W	10 W
Power Supply	220VAC-50Hz	220-230 V \ 50-60Hz
Power	150W	150W
Weight	20 Kg	20 Kg

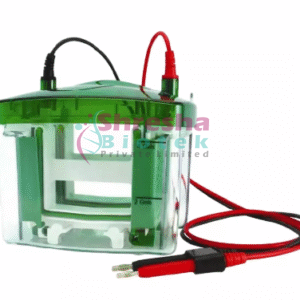

VERTICAL ELECTROPHORESIS

SPECIFICATIONS	PARAMETERS
Model No.	DR-VE1	DR-VE2
Dimension(LxWxH)(mm)	185108125	153183159
Gel size (mm)	83*73	83*73
Comb Specifications	1.0mm :11 teeth 1.5mm: 11 teeth	1.0mm: 11 teeth/ 15teeth 1.5mm: 11 teeth/ 15teeth 0.75mm: 11 teeth/15teeth
Maximum Buffer Capacity	0.5L	1.6 L
Number of Gels	1-2	1-4

WESTERN BLOT ASSEMBLY:

SPECIFICATIONS	PARAMETERS
Model No.	DR-VE1	DR-VE2
Number of Gels	1-2	1-4
Dimension (LxWxH)(mm)	185108125	153183159
Transfer size (mm)	70*90	70*90mm
Buffer volume	0.5L	1.6L

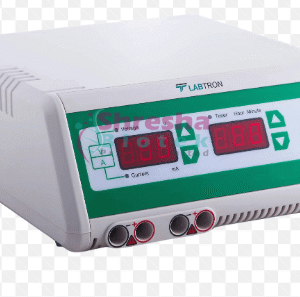

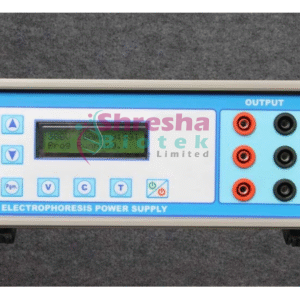

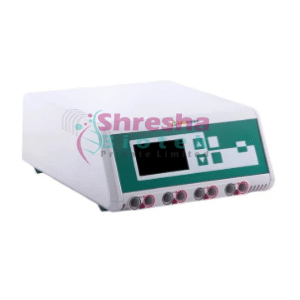

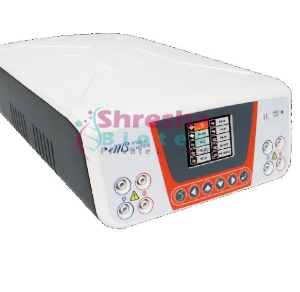

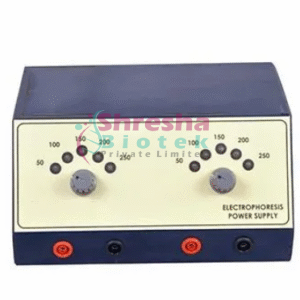

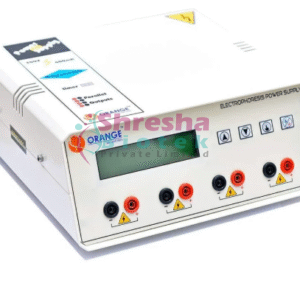

POWER PACK

The Power Pack DR Labs is an advanced rectifier device designed to convert alternating current (AC) to direct current (DC) for high-precision applications. Its versatile design supports constant voltage and current control, making it an ideal solution for a wide range of laboratory experiments such as nucleic acid gel electrophoresis, protein gel electrophoresis, Western blotting, and protein transfer. This device is widely used in biological and medical fields for precise, stable, and reliable performance.

TECHNICAL SPECIFICATIONS:

Input Power Supply:	180V-240V
AC Frequency:	50Hz/60Hz
Ambient Temperature:	4°C to 40°C
Environmental Humidity:	10%-70%
OUTPUT RANGE:
Voltage:	6V-600V (accuracy 1V)
CONTROL ACCURACY:
Voltage Setting:	<100V voltage stability accuracy: <1V >100V voltage stability accuracy: <±1%
CURRENT SETTING:
CURRENT SETTING:	<100mA current stability accuracy: <1mA >100mA current stability accuracy: <±1%
Rated Output Power:	300W
Dimensions:	265mm (L) x 215mm (W) x 120mm (H)
Output Quantity:	Positive, negative A/B four groups.
WORKING MODES:
Constant Voltage (U Mode):	Default mode, ensures constant voltage during operation.
Constant Current (I Mode):	Provides stable current control for sensitive applications.
Gradient Voltage/Current (Gradient U/I Mode):	Allows setting of three different voltage or current segments for more complex protocols.

THERMO SHAKER INCUBATOR

Model	DR-TSI	DR-TSI-T
Display	4.3 inch touch screen (capacitive type)	4.3 inch touch screen (capacitive type)
Temperature control range	RT +5℃~105℃	0℃~105℃
Temperature uniformity	≤0.5℃	≤0.5℃
Timer range	1min~99h59min	1min~99h59min
Temperature control accuracy	±0.5℃(@30-50℃)	±0.5℃(@30-50℃)
Display accuracy	±0.1℃	±0.1℃
Shaking speed	200-3000rpm	200~3000rpm
Heating time (25-100℃)	≤15min (RT 20℃～30℃)	≤15min (RT 20℃～30℃)
Refrigeration time(detected at 25℃ ambient temperature)	—	≤20min (Ambient temperature ≤20℃: 20℃～0℃) ≤20min(Ambient temperature ≤25℃:RT～4°C) ≤20min (Ambient temperature ≤30℃:RT～10℃
Heating rate gear	Max; 3℃/min; 2°C/min;1℃/min; 0.1℃/min	Max; 3℃/min; 2°C/min;1℃/min; 0.1℃/min
Cooling rate gear	—	Max;1℃/min;0.5℃/min;0.1℃/min
Program number	50	50
External port	USB: program related, printer; 7Pin socket: thermo lid	USB: program related, printer; 7Pin socket: thermo lid
Shaking amplitude	3mm	3mm
Dimension(mm)	318x154x220	318×154×220
Blocks	0.5ml tubes, 2ml tubes & 96 well PCR Plate Optional: 0.2 1.5, 5, 15, 50 ml tubes, 384 well plates
Weight	10kg	10kg

UV TRANS ILLUMINATOR

Model No.	DR-UVD	DR-UVA
wavelength	302 & 365nm	365nm
Viewing area	21×26 cm
UV tube	8×8 watts
Two-way switch	Switches between UVA & UVB (302&365nm)	Switches between high & low intensity
Input power	220 V, 50-60Hz

MICROPLATE SHAKER INCUBATOR

SPECIFICATIONS

Model No.	DR-70	DR-60
Speed Range	300 – 1200rpm	200- 1200rpm
Shaking Orbit	3mm(horizontal)	2mm (horizontal)
Temp. Control Range	R.T+5°C – 70°C	R.T+5°C – 70°C
Temp. Setting Range	5°C – 70°C	5°C – 70°C
Temp. Stability	@37°C ±0.2°C	±0.2°C

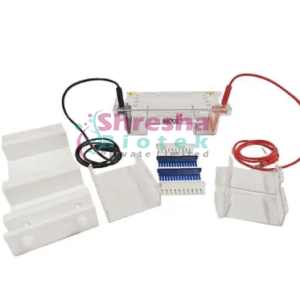

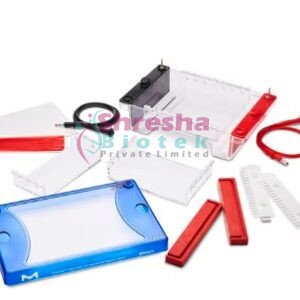

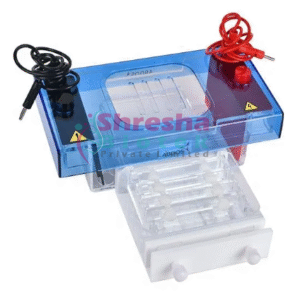

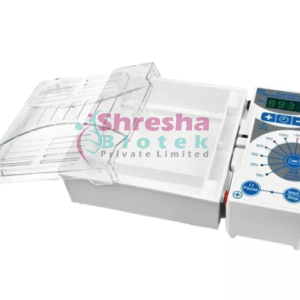

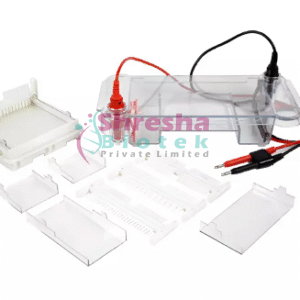

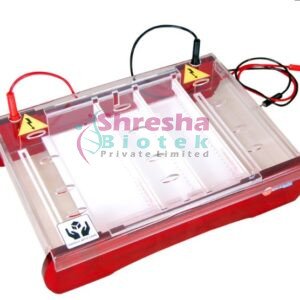

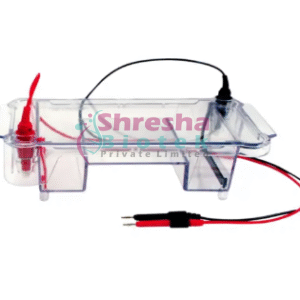

HORIZONTAL GEL ELECTROPHORESIS

SPECIFICATIONS

Model No.	DR-20HE	DR-25HE
Gel dimension	20×20 cm & 20×25 cm	25×25 cm & 33×25 cm
Sample combs	4(1.5, 1.5) & 4 (1mm)	4(1.5) & 4 (1mm)
Comb thickness	1.5 mm, 1mm	1.5mm & 1mm
Buffer volume	2.5 L	4L
Max. no. sample	60	104
Size (LxWxH)	43×23.5×7.5	53x28x8.5

CENTRIFUGE

ax. Speed	18500rpm
Max. RCF	23990×g
Max. Capacity	4×250ml
Time Range	0~99min
RPM/RCF Convert	Yes
Noise (dB)	≤ 55
Temperature	/
Acc/Dec	10 Kinds
Speed Accuracy	±20r/min
Temperature Accuracy	/
Voltage(V/Hz)	AC 220V/110V 50HZ/60HZ
Certificates	CE,ISO & Calibration report are available
Size (W x D x Hmm)	400×570×320mm
Net Weight(Kg)	40KG

Rotors :

NO	Rotor	Max Speed (rpm)	Max Volume (ml)	Max. RCF（×g
1	Swing Rotor(Round bucket)	4000	4x250ml	2880
2	Swing Rotor(Square bucket)	4000	4x250ml	2830
3	Swing Rotor	4000	4x16x7ml	2860
4	Swing Rotor	4000	4x16x5ml	2470
5	Swing Rotor	4000	4x13x10ml	2830
6	Microplate rotor(box type)	4000	2×3×96 well	2310
7	Microplate rotor(fame type)	4000	2×3×96 well	2270
8	Swing out rotor	5000	4×1×50ml	4730
9	Swing out rotor	5000	4×1×100ml	4730
10	Swing out rotor	4000	4×2×100ml	3020
11	Swing out rotor	4000	4×2×50ml	3020
12	Swing out rotor	4000	4×4×15ml	3020
14	Swing out rotor	4000	4×6×15ml	3200
15	Swing out rotor	4000	4×4×10/7ml	2770
16	Swing out rotor	4000	4×4×10/7ml	2770
17	Swing out rotor	4000	4×4×5ml adapter	2360
18	Swing out rotor	4000	4×6×10/7ml	2770
19	Swing out rotor	4000	4×6×5ml adapter	2360
20	Swing out rotor	4000	4×8×10/7ml	2770
21	Swing out rotor	4000	4×8×5ml adapter	2360
22	Swing out rotor	4000	4×12×5ml	2480
23	Swing out rotor	4000	4×12×7ml	2760
24	Swing out rotor	4000	4×10×10ml	2880
25	Fixed Rotor	14000	4×8PCR	12070
26	Fixed Rotor	13000	6×8PCR	16080
27	Fixed Rotor	14000	8×8PCR	13390
28	Fixed Rotor	13000	12×8PCR	17220
29	Fixed Rotor	14000	40×0.5ml	19960
18B-33	Fixed Rotor	18500	12×1.5ml	23990

HIGH SPEED COOLING CENTRIFUGE

Model	DR-C-108	DR-C-109	DR-C-110
Max. Speed	16,000 rpm	18500rpm	21000rpm
Max. RCF	20,600×g	23990×g	30910×g
Max. Capacity	6×100ml	4×180ml	4×800ml
Time Range	1–59h 59 min	0~59h59min	0~59h59min
RPM/RCF Convert	Yes	Yes	Yes
Noise (dB)	≤ 58	≤ 58	≤ 58
Temperature	-20°C to +40°C	-20℃~+40℃	-20℃~+40℃
Acc/Dec	10 Kinds	10 Kinds	10 Kinds
Speed Accuracy	±20 rpm	±20r/min	±20r/min
Temperature Accuracy	±1°C	±1°C	±1°C
Supported rotor type	Angle (27), swing (01), plate (01)	Swingout (07), Microplate (02), Angle (23), Vertical (02)	Swing (08), Microplate (03),Fixed rotor (35)
Dimension (LxWxHmm)	513×370×320 mm	570x600x340mm	513×370×320mm
Voltage(V/Hz)	AC 220V, 50Hz	AC 220V/110V, 50HZ/60HZ	AC 220V/110V 50HZ/60HZ
Certificates	CE, ISO	CE, ISO & Calibration report are available	CE, ISO &Calibration report are available

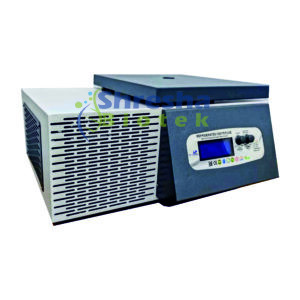

HIGH SPEED REFRIGERATED CENTRIFUGE

Model	DR-RC-101	DR-RC-102	DR-RC-103
Max. Speed	16,000 rpm	18500rpm	21000rpm
Max. RCF	20,600×g	23990×g	30910×g
Max. Capacity	6×100ml	4×180ml	4×800ml
Time Range	1–59h 59 min	0~59h59min	0~59h59min
RPM/RCF Convert	Yes	Yes	Yes
Noise (dB)	≤ 58	≤ 58	≤ 58
Temperature	-20°C to +40°C	-20℃~+40℃	-20℃~+40℃
Acc/Dec	10 Kinds	10 Kinds	10 Kinds
Speed Accuracy	±20 rpm	±20r/min	±20r/min
Temperature Accuracy	±1°C	±1°C	±1°C
Supported rotor type	Angle (27), swing (01), plate (01)	Swingout (07), Microplate (02), Angle (23), Vertical (02)	Swing (08), Microplate (03),Fixed rotor (35)
Dimension (LxWxHmm)	513×370×320 mm	570x600x340mm	513×370×320mm
Voltage(V/Hz)	AC 220V, 50Hz	AC 220V/110V, 50HZ/60HZ	AC 220V/110V 50HZ/60HZ
Certificates	CE, ISO	CE, ISO & Calibration report are available	CE, ISO &Calibration report are available

DNA ELECTROPHORESIS

ELISA READER

Plate Style	48-hole,96-hole microplate or bar plate
Applicable hole	Flat, V-bottom or U-bottom
Wavelength Range	400~800nm
Standard Filters	405,450,492,630nm
Additional Filters	On request, filter wheel for up to 8 filters
Reproducibility	≤0.2%
Shaking	Linear Shaking, 3 speeds
Screen	7 Inch colour LCD
Interface	USB, VGA, NETWORK INTERFACE, AUDIO INTERFACE, RS-232
Read Speed	Single wavelength ≤ 3s /96 holes
Power Supply	100~240V, 50~60Hz

PARAMETERS:

Light Source	Controlled tungsten halogen lamp
Photodetector	Silicon Photodiode
Indication Range	0.000~4.000OD
Accuracy	±1.0% at 1.0 OD, 450nm
Resolution	0.001OD
Stability	±0.003OD
Display	10.4 inch colour LED display, resolution 1024*600
Data Storage	2,000,000 test data, more than 500 test projects
Best Environment	5℃~40℃;max humidity:80%
Dimensions/Weight	460×350×197mm/10kg

ELISA WASHER

MODEL	DR-EW
Wash manifolds	8-and 12-channel
Microplates	96-well and 48-well plate
Wash lines	1-12 line adjusting
Washing times	1-99 times adjustable
Soaking or shaking	Soaking:0-999s adjustable; shaking:999s adjustable
Solution channel	3 pc
Water mist catching device	No
Auto discharge for waste liquid	No
Washing programs	100 washing programs

FREEZE DRYER

Models	DR-FD-10	DR-FD-10L	DR-FD-10LZ	DR-FD-10LZ+
Type	Standard chamber	Standard Chamber with 8 manifolds	TOP Press	TOP Press with standard chamber
Freeze drying area	0.12 ㎡
Ice Condenser capacity	3-4 kg /24h
Condenser temperature	-50°C /-80°C
Final Vacuum	< 10 Pa
Tray	Ф200 mm,4 layers, Spacing 70 mm
Bulk capacity	1.2 L, 10 mm thickness
Vial capacity Φ12mm	820 pcs
Vial capacity Φ16mm	460 pcs
Vial capacity Φ22mm	244 pcs
Condenser size	Ф215 mm, 140 mm deep
Drying chamber size	Ф260 × 430 mm
Vacuum Pump Flow Rate	2 L/S, 7.2 m³/h
Defrosting	Electric Defrosting
Cooling	Air cooling, ambient temperature ≤28°C
Voltage	220V /50 Hz, single phase
Power	970 W (-50°C) /1400 W (-80°C)
Dimension	610 x 450 x (370+430) mm (-50°C) 850 x 680 x (400+430) mm (-80°C)
Weight	70 kg (-50°C) 130 kg (-80°C)

GEL DOCUMENTATION SYSTEM

Pixel Resolution:	6.3 million pixels (3072 x 2048)
Pixel Size:	2.4 x 2.4 μm
Exposure Time:	17 μs – 15 s
Focal Length:	8-48mm
Grayscale:	16-bit (256 levels)
Field of View:	220 x 220 mm
Operating System:	Windows OS, 10.4-inch display (1024 x 768 resolution)
External Interfaces:	USB 3.0 x 2
Operating Voltage:	100V-240V
Power Consumption:	200W
Net Weight:	27kg
1D Image analysis:	1D image analysis and capture software.

DIGITAL VDRL SHAKER

DIGITAL MINI CENTRIFUGE

Model	DR-MC-15
Make	DR Labs
Speed Range	500~15000 RPM
Speed Increament	100 RPM
Max. RCF (x g)	15100, increment: 100
Speed Accuracy	±20
Rotor Capacity	0.2ml/0.5ml/1.5ml/ 2ml×12
Timer	Timer: 30s~99 min
Motor	Brushless DC Motor
Safety Features Noise	Door interlock, Over-speed detection, Over-temperature detection, Automatic internal diagnosis
Acceleration/Brake Time	Acceleration: 30s, Braking:10s
Power Supply	AC 220V / 50Hz
Dimension	256 x 225 x 155 mm & 6 kg
Weight	6 kgs

-80°C DEEP FREEZER

SPECIFICATIONS:

Model no.	DR -80
Volume	450 L
Temperature	-40 TO -80℃
Insulation thickness	150mm
Cooling type	Direct cooling
Electric protection	I/B
Refrigerant	Mixed
Interior dimension	552x635x1142mm
Consumption	9.8kW. h/24h
Power	1000W
Power Supply	220V/50Hz
Climate class	N
Alarm type	Sound/ light
Exterior dimension	855x965x1865mm
Package dimension	960x1030x2030mm
Net weight	205 kg
Gross weight	255 kg
Optional function	Printer & recorder

-40°C DEEP FREEZER

SPECIFICATIONS:

Temperature range	-10° C to -40°C
Temperature accuracy	±0.5°C
Temperature Uniformity	±0.1°C
Temperature controller	Dual display PID controller
Temperature sensor	PT100
Inner chamber	SS 304
External cabinet	Powder coated GI sheet
Insulation	Glass wool
Door	Insulated door Mechanical latch / clamp
Heaters	Resistance wire heaters
Shelves	SS wire mesh (removable)
Standard fittings	Mains on/off switch Load Indicator Fan on/off switch
Power supply	220 Volts 50Hz
Optional	GMP construction (Inner & outer SS304) PLC + HMI controller w/ USB interface 21 CFR Part 11software Data logger w/ USB interface Thermal printer Inner chamber LED light

-20°C DEEP FREEZER

INCUBATOR SHAKER

Shaker Speed (20 – 250 RPM) (350,400 & 500 OPTIONAL)
Orbit Diameter	ø 25 mm
Accuracy	± 2% of maximum speed
Temperature range	5˚C above RT to 60˚C & with cooling 5°C-60°C (Customize temperature options available)
Resolution	0.1°C
Temp. accuracy	± 0.3˚C
Power supply	230V ± 10%, 50Hz

TECHNICAL SPECIFICATIONS:

Flasks	12X12	16X16	18X18	24X24
50ml	19	40	45	60
100ml	12	16	18	24
250ml	9	12	16	24
500ml	4	6	8	10
1000ml	2	3	3	5
2000ml	1	2	2	4

LAMINAR AIR BENCH

Air flow direction	Vertical and Horizontal
Air cleanliness	Class 100
Construction	SS / Powder coated MS / GI sheet/ wooden with 18 gauge ss.
Sash (front door)	Manual/ Motorized sliding type (Acrylic transparent and tiffin glass)
Side panels	Acrylic /polycarbonate / SS
Air velocity	0.4 m/s to 0.6 m/s/ 0.45m/sec
Illumination	Fluorescent or LED light/ UV light (800lux, glare-free)
Noise level	65 ±5 dB
Power supply	220 volts / 50 Hz
Air filtration	Pre-Filter – 5 microns (washable) HEPA filter (0.3 Microns)
Air filtration	Air / gas cock, Mains on/off switch, Light on/off switch UV Light on/off switch, Blower on/off switch
Optional	Motorized sliding door LCD display for velocity, time & lamp on/off UV Germicidal lamp UV Hour meter Magnehelic gauge Extra power outlet switchr Foot rest Levelling legs for stand DOP HEPA filter testing

FUME HOOD

NNER CHAMBER	SS 304 / 316/FRP COATING/PHENOLIC RESIN
EXTERIOR	Powder coated MS / Stainless Steel /GI
WORK TOP	SS 304 /Jet black granite
ILLUMINATION	Fluorescent tube light
BLOWER	Centrifugal exhaust blower (direct drive motor)
STANDARD FITTINGS	Water tap, sink with drainage system, electrical sockets and Canopy ventilation
OPTIONAL	FRP coating on inner walls Air foil Scrubber system Storage cabinet Caster wheels with brake Wet & dry service valves Certification (ASHRAE110- 1995 / EN-14175- 2003) Air Temperature indicator Flow Monitor IQ/OQ/PQ

STANDARD SIZE/DIMENSION:

Model	Dimensions
DR-FH-222	2 x 2 x 2 ft	610 x 610 x 610 mm
DR-FH-322	3 x 2 x 2 ft	914 x 610 x 610 mm
DR-FH-422	4 x 2 x 2 ft	1219 x 610 x 610 mm
DR-FH-522	5 x 2 x 2 ft	1524 x 610 x 610 mm
DR-FH-622	6 x 2 x 2 ft	1829 x 610 x 610 mm

PCR CABINET /HOOD

ir flow direction	Vertical
Air cleanliness	Class 100
Construction	SS / Powder coated MS / GI sheet/ wooden
Air flow direction	Vertical
Sash (front door)	Manual sliding type (Acrylic transparent)
Side panels	Acrylic / polycarbonate / SS
Air velocity	0.45 m/s to 0.65 m/s
Illumination	Fluorescent or LED light
Noise level	65 ±5 dB
Power supply	220 volts / 50 Hz
Air filtration	Pre-Filter – 10 microns (washable) HEPA filter (0.3 Microns)
Standard fittings	Air / gas cock, Mains on/off switch, Light on/off switch UV Light on/off switch, Blower on/off switch
Optional	Motorized sliding door LCD display for velocity, time & lamp on/off UV Germicidal lamp UV Hour meter Magnehelic gauge Extra power outlet switch Foot rest Levelling legs for stand DOP HEPA filter testing

RECTANGULAR AUTOCLAVE

Construction	Economy Model	Double Walled Model	Triple Walled Model
MOC Exterior	Painted MS sheet	SS 304 (mirror finish)	SS 304 (mirror finish)
No. of walls	Two	Two	Three
Lid	Polished MS	SS 304	SS 304
Interior	SS 304 with silicon gasket
Working Pressure	15-30 psi
Working Temp.	121°C to 134°C
Controller	Auto set to 15psi & 121°C
Pressure display	Analogue dial gauge
Timer	Mechanical timer
Programmable	Programmable automatic start timer
Hydraulic tested	Hydraulically Tested up to 40 psi (ASME Guideline)
Lick lock	Single hand easy lock system for operating and closing
	Program for heating sterilization, exhaust, warming and completion.
Basket	Stainless steel basket	Stainless steel basket	Not Required
Power supply	220 Volts 50Hz
Standard Fittings	Low water indicator; Automatic pressure switch; Pedal lifting device Steam release valve; Water outlet valve; Spring loaded safety valve Power cable with three pin tops
Optional Accessories	Fully stainless steel construction (GMP) Up to 134°C temperature range PID temperature controller cum timer with alarm (buzzer) PLC with HMI interface with data logging 21 CFR Part 11 software Thermal Printer Lower water cut-off

TECHNICAL PARAMETERS:

Parameter	DR-04WB	DR-06WB
Column	2 rows 4 holes	2 rows 6 holes
Temp. range	Rt+5~100℃
Temp. Resolution Ratio	0.1℃
Temp. Motion	±0.5℃
Temp. Uniformity	±1℃
Water sink	Stainless steel, surface electrolysis treatment
Outer shell	Cold rolled steel plate, surface electrostatic powder spray.
Heater	Stainless steel U-type heating tube
Power rating	1200 W
Temp. control mode	PID Controller
Timer	0 – 999 min（with timing function）
Timing function	Timing function, auto stop feature
Program	Optional: multi-section program control
Additional function	Deviation correction, menu key lock, power failure back-up, power-off parameter memory, PID-Tunable control
Sensor	Thermal resistor
Safety device	Over-temperature alarm, short-circuit protection.
Inner Chamber size(WLH)	305 x 305 x 130 mm	305 x 470 x 130 mm
Packing size (WLH)	415 x 415 x 275 mm	400 x 560 x 250 mm
Internal volume	12 L	18.6 L
Cover number per hole	∅120 mm
Power Supply 50/60Hz	220V, 50/60 Hz
Weight	6.5 kg	8 kg

DIGITAL WATER BATH SHAKER

REFRIGERATING CIRCULATION BATH

Model	DR-RCB-6	DR-RCB-12
Make	DR Labs	DR Labs
Temp. Control Range	-20°C ~ 100°C	-20°C ~ 100°C
Temp. Resolution	0.01°C	0.01°C
Temp. Accuracy	±0.05°C	±0.05°C
Temp. Control	Microprocessor PID	Microprocessor PID
Display	LCD	LCD
Refrigeration Model	Air cooled refrigeration through compressor	Air cooled refrigeration through compressor
Refrigerant	R134A	R134A
Pump Circulation	Internal & External	Internal & External
Temp. Sensor	PT-100	PT-100
Pump Flow Rate	6L/min	6L/min
Tank Capacity	6L	12 L
Tank Size	250 x 200 x 150 mm	300 x 250 x 200 mm
Bath Opening	180 x 140 mm	235 x 160 mm
Bath Depth	150 mm	200 mm
Power Supply	AC 220 V / 50 Hz	AC 220 V / 50 Hz
Dimensions	320 x 370 x 655 mm	320 x 370 x 765 mm
Packing Dimensions & Weight	530 x 450 x 800 mm & 44 kgs	530 x 450 x 900 mm & 50 kgs

PLANT GROWTH CHAMBER

Parameters	Specifications
Temperature range	Lights Off: 5°C to 60°C; Light ON: 10°C to 60°C
Temperature controller	Digital PID controller with SV & PV values
Temperature accuracy	±1%
Humidity	50% to 90%
Humidity controller	Digital PID controller with SV & PV values
Humidity accuracy	±3%
Illumination	3 sides illumination with detachable LED lights(10000 LUX or 23000 LUX)
Light timer	24×7 weekly digital timer
Shelves	Stainless steel or chrome plated (Height adjustable)
Humidity system	SS boiler tank with immersion heater and automatic water replenishment by external tank
Safety	Audio / visual alarm for temperature deviation
Optional	Exterior made of stainless steel 304 / 316 White painted steel inner walls Door open alarm Plant growth racks UV lamp PLC with HMI interface Data logger with USB interface Password protection for controller Caster wheels
Power supply	220 Volts / 50 Hz

DR-150PGC	800 x 500 x 380	150 L
DR-250PGC	550 x 450 x 1000	250 L
DR-350PGC	550 x 550 x 1200	350 L
DR-450PGC	800 x 600 x 1250	600 L
DR-800PGC	1120 x 600 x 1200	800 L
DR-1000PGC	1150 x 670 x 1300	1000 L

SEED GERMINATOR CHAMBER

Temperature range	5°C to 60°C
Temperature controller	Digital PID controller
Temperature accuracy	±1%
Temperature sensor	PT-100
Humidity range	50% to 90% RH
Humidity controller	Digital PID controller
Humidity accuracy	±3%
Light	150-170 micromole/m2/sec
Light timer	24×7 weekly digital timer
Construction	Double walled
Exterior	Mild steel powder coated
Interior	Stainless steel 304
Outer door	Single or double solid doors with lock & key
Inner door	Glass door to view samples
Shelves	3 to 12 (Height adjustable)
Safety	Audio / visual alarm for temperature deviation
Optional	Exterior made of stainless steel 304 / 316 PLC with HMI interface Data logger with USB interface Password protection for controller Caster wheels
Power supply	220 Volts / 50 Hz

SIZE:

Model

Dimensions (mm)

Volume (Litres)

Volume (Cu. Ft.)

DR-SGC171

505 x 415 x 830

171

DR-SGC209

600 x 550 x 910

300

Temperature range	5°C to 60°C
Temperature controller	Digital PID controller
Temperature accuracy	±1%
Temperature sensor	PT-100
Humidity range	50% to 90% RH
Humidity controller	Digital PID controller
Humidity accuracy	±3%
Light	150-170 micromole/m2/sec
Light timer	24×7 weekly digital timer
Construction	Double walled
Exterior	Mild steel powder coated
Interior	Stainless steel 304
Outer door	Single or double solid doors with lock & key
Inner door	Glass door to view samples
Shelves	3 to 12 (Height adjustable)
Safety	Audio / visual alarm for temperature deviation
Optional	Exterior made of stainless steel 304 / 316 PLC with HMI interface Data logger with USB interface Password protection for controller Caster wheels
Power supply	220 Volts / 50 Hz

STANDARD SIZE:

Model	Dimensions (mm)	Volume (Litres)	Volume (Cu. Ft.)
DR-SGC171	505 x 415 x 830	171	6
DR-SGC209	600 x 550 x 910	300	10
DR-SGC340	650 x 580 x 900	340	12
DR-SGC400	700 x 640 x 900	400	14
DR-SGC580	775 x 775 x 970	580	20

DR-SGC340

650 x 580 x 900

340

DR-SGC400

700 x 640 x 900

400

DR-SGC580

775 x 775 x 970

580

CARBON -DIOXIDE INCUBATOR

SPECIFICATIONS:

Item Name	CO2 Incubator
Model No.	DR-CO2-80UV	DR-CO2-80	DR-CO2-80+	DR-CO2180UV	DR-CO2-180	DR-CO2-180+
Sterilization	UV	140°C	180°C	UV	140°C	180°C
Volume	80L	80L	80L	180L	180L	180L
Microprocessor-based controller	Proprietary algorithm to control CO2 and temperature
Display	LCD touch display
Temp control range	Ambient +5°C- 60°C
Temp stability	±0.1°C
Temp field uniformity	±0.3°C (at 37°C )
Timer function	0 – 999hr 59 min.
CO2 measurement principle	Infrared (IR) detection
CO2 control range	0-20%
CO2 display resolution	0.10%
CO2 supply	0.05~0.1MPa is recommended
Relative Humidity	Ambient humidity ~95% at 37°C
HEPA filtration	HEPA filters at the gas inlet, ISO 5 level, 5 minutes
Temperature recovery time	≤10 min (open door 30sec room temperature 25°C set value 37°C)
O2 concentration recovery time	≤5 min (open the door 30sec set value 5%)
MOC	The inner chamber is made up of stainless steel and outer chamber with MS with powder coating
Light	Florescent light
Historical data storage	250,000 messages
Data export interface	USB interface
Scalability	Up to 2 units can be stacked.
Working environment temperature	18~30°C
Power supply	230V±10%, 50~60Hz
Inner Dimensions (L x D x H) mm	450x450x450			550x600x600
Outer Dimensions (L x D x H) mm	650x650x750			750x800x850

STABILITY / HUMIDITY CHAMBER

SPECIFICATIONS:

Temperature Range	5°C to 60°C
Temperature accuracy	±1°C
Temperature controller	Microprocessor PID controller Display of SV & PV Low / High buzzer
Humidity Range	40% to 95% RH
Humidity accuracy	±3% RH
Humidity controller	Microprocessor PID controller Display of SV & PV Low / High buzzer
Chamber Illumination	Fluorescent white light
Construction	Double walled
Insulation	PUF insulation
Exterior	Powder coated GI sheet
Interior	Stainless steel 304
Door	Solid insulated door with lock and key
Inner door	Glass door fitted in steel frame
Shelves / trays	2 to 5 steel wire mesh trays (height adjustable)
Air Circulation	Axial fan / blower
Refrigeration	CFC Free compressor with condenser, motor and relay complete unit
Humidity system	SS tank with heater Low water buzzer Auto filling water system
Optional	Stainless steel exterior (GMP) PLC based HMI controller w/ USB interface RS 485 interface 21 CFR part 11 software UV light Storage racks Validation port Caster wheels with brake IQ, OQ and PQ documents

Volume (Liters)	Inner Chamber size (mm)	Trays
200 Liters	600 x 600 x 600	2
324 Liters	600 x 600 x 900	2
450 Liters	600 x 600 x 1250	3
600 Liters	600 x 800 x 1250	3
800 Liters	800 x 800 x 1250	4
1000 Liters	800 x 800 x 1570	4

COOLING INCUBATOR SHAKER

Shaker Speed	(20 – 250 RPM) (350,400 & 500 OPTIONAL)
Orbit Dia	ø 25 mm
Accuracy	± 2% of maximum speed
Temperature range	5˚C above RT to 60˚C & with cooling 5°C-60°C (Customize temperature options available)
Resolution	0.1°C
Temp. accuracy	± 0.3 ̊C
Power supply	230V ± 10%, 50Hz

VACUUM OVEN

Chamber design	Round and Rectangular
Vacuum range	Up to -760 mmHg
Temperature range	Ambient+5°C to 150°C (Optional 200ºC)
Temperature sensor	PT100
Temperature controller	Digital PID controller Display of SV & PV
Inner chamber	Hermetically welded stainless steel 304 sheet
External cabinet	Powder coated GI sheet
Door	Solid door with clamp & toughened glass window
Gasket	High temperature silicon gasket
Shelves	Removable SS shelves
Vacuum fittings	Vacuum valve / exhaust valves (Rubber hose)
Standard fittings	Mains on/off switch Vacuum pump on/off switch Electric socket for vacuum pump
Power supply	220 Volts 50Hz
Optional	KF25 flange vacuum connection 21 CFR compliance software Temperature up to 250°C All SS 304 construction (GMP) Digital vacuum control through solenoid valves PLC + HMI controller with USB interface Diaphragm valves for inert gas Timer 99 hours 59 min Oil-free vacuum pump

BIO SAFETY CABINET A2

LOOP STERILIZER

SPECIFICATIONS:

Model No.	DR-800D
Center Max. Temp.	825°C
Low Level Temp.	480°C
Heating Speed	20min (to max. temp.)
Max. Sterilize Diameter	Φ35mm
Heating Element Length	100mm
Adjustable Angle	75°~120°
Voltage	AC 220V / AC 110V, 50/60Hz
Power	400W
Fuse	250V, 3A/5A, Ф5×20
Dimension (WxDxH)	92 x 101 x 170mm
Net Weight	1.1kg

BIOSAFETY CABINET B2

Category	DR-B2
External Size (WDH)	13837752250 mm
Internal Size (WDH)	1210600660 mm
Tested Opening	Safety height 10″
Max Opening	470 mm
Airflow Volume (Exhaust)	100%: 1320 m³/h (776 cfm)
Front Window	Motorized;Two-layer laminated toughened glass ≤6mm, Anti-UV
Filter	ULPA,99.9995% efficiency at 0.12μm (02), filter life indicator
Filter Guard Type	Aluminum alloy frame
Noise	NSF 49 ≤60 dB
Illumination	≥1000 Lux
Socket	2, Total consumption ≤500W
Display	Touch screen
Tap	Water tap1, Gas tap1
Power Supply	AC220V,50/ 60Hz
Consumption	400W
Alarm	Abnormal airflow velocity; Filter replacement; Front window at unsafe height
Blower	One ECM motor, 230V AC; Speed adjustable, high efficiency and low power consumption
Material	Working area: 304 stainless steel Frame,Decorative Plate: cold-rolled steel with anti- bacteria powder coating
UV Lamp	30W
Germicidal UV Lamp	Emission of 253.7 nanometers for most efficient decontamination
Certification	NSF 49
Illuminating Lamp	LED lamp, 20W*2
Standard Accessory	LED lamp2, UV lamp2, Base stand, SS water tap1, Gas tap1, Drain valve, Waterproof socket*2
Optional Accessory	Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer, exhaust duct
Package Size (WDH)	154010801900 mm
Gross Weight	340 kg

HOT AIR OVEN

BACTERIOLOGY INCUBATOR

SPECIFICATIONS:

Temperature range	Ambient to 60°C
Temperature accuracy	±0.2°C @37°C
Temperature controller	Dual display PID controller, Display SV & PV, Auto tuning feature
Temperature sensor	PT100
Inner chamber	SS 304
External cabinet	Powder coated GI sheet
Insulation	Glass wool
Door	Insulated door, Mechanical latch / clamp, Glass window
Heaters	Resistance wire heaters (Air Fin Heaters optional)
Shelves	SS wire mesh (removable)/ Shelves with holes for small instruments
Air circulation	Motorized blower / Axial fan
Standard fittings	Mains on/off switch, Load Indicator, Fan on/off switch
Power supply	220 Volts 50Hz
Optional	GMP construction (Inner & outer SS 304) PLC + HMI controller w/ USB interface 21 CFR Part 11 software Data logger w/ USB interface Thermal printer Inner chamber LED light

B.O.D INCUBATOR

SPECIFICATIONS:

Temperature range	5°C to 60°C
Temperature accuracy	±0.2°C @37°C
Temperature controller	Dual display PID controller Display SV & PV Auto tuning feature
Temperature sensor	PT100
Inner chamber	SS 304
External cabinet	Powder coated GI sheet
Insulation	Glass wool
Door	Insulated door Mechanical latch/clamp Glass window
Heaters	Resistance wire heaters
Shelves	SS wire mesh (removable)
Air circulation	Motorized blower / Axial fan
Standard fittings	Mains on/off switch Load Indicator Fan on/off switch
Power supply	220 Volts 50Hz
Optional	– Calibration certificate – Data logger w/ USB – Interface thermal printer. – Inner chamber LED light.
